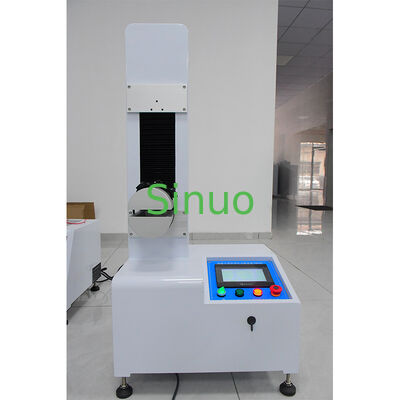

ISO18527-3 Swimming Eyewear Headband Slipping Resistance Testing Device

MOQ: 1
Price: Tailored
Standard Packaging: Plywood
Delivery Period: 20 business days
Payment Method: T/T,Western Union
Supply Capacity: 10 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SNF07
Sample Limitations:
SwimmingEyewear Headband
Test Items:
Endurance And Tensile Strength
Test Station:
Single Station
Fixture Size:
R135±30mm
Test Stroke:
0-200mm
Control Method:
PLC+data Export
Test Times:
0~999,999 Times, Presettable
Test Rate:
5-12 Times/min, Presettable
Highlight:

Eyewear Headband Slipping Resistance Testing Device

,

ISO18527-3 Headband Slipping Resistance Testing Device

Product Description
ISO18527-3 Swimming Eyewear Headband Slipping Resistance Testing Device
Standard Compliance
  • GB/T44458.3-2024 Eye and Face Protection for Sports - Part 3: Requirements and Test Methods for Swimming Goggles Clauses 11.4 and 11.5
  • ISO18527-3:2020 Eye and face protection for sports use -- Part 3: Requirements and test methods for eyewear intended to be used for surface swimming
Purpose, Equipment Principle and Structure

This device is used to test whether the headband of swimming goggles can withstand the mechanical stress that occurs during normal use without excessive wear, loosening or other harmful effects, in order to verify its reliability.

ISO18527-3 Swimming Eyewear Headband Slipping Resistance Testing Device diagram showing equipment structure
Technical Specifications
Parameter Specification
Sample and Limitations Eyewear intended to be used for surface swimming
Test Purpose Examines whether the headband of swimming goggles can withstand mechanical stresses during normal use without excessive wear, loosening, or other harmful effects
Test Principle Utilizes servo motor drive mechanism to apply 10N±0.5N load at 6 times/min for 60 cycles; also used for headband tensile strength testing
Structure and Features Integrated frame, servo motor driven, precision ball screw slide transmission, color touchscreen, PLC intelligent control system, force sensors, cantilever clamp structure
Usage Environment AC220V±10%/50-60Hz, 1kW; Operating temperature: 0-40℃; Humidity: 30%-90%; Dimensions: W650*D400*H750mm; Weight: 100kg
Key Performance Indicators
Test Items 1. Load endurance test
2. Headband tensile strength test
Test Sample Range Eyewear intended to be used for surface swimming
Workstation Single station
Electrical Control Mitsubishi PLC intelligent integrated control, 7-inch color HMI, USB data export
Operating Mode Manual or programmable operation
Function Simulates headband pulling, applies force repeatedly, programmable test frequency, displacement, force value, and test count
Drive Method Servo motor + precision slide drive mechanism
Swimming eyewear headband testing sample range and application
Sample Fixture and Clamping Method

Mechanical clamping: the upper hemisphere is fixed, and the lower hemisphere is connected to the drive mechanism. As the drive mechanism moves vertically up and down relative to the upper hemisphere, the vertical centers of the upper and lower hemispheres coincide.

Upper and lower hemispherical cylindrical surfaces: R135±30mm

Sample fixture and clamping mechanism diagram for swimming eyewear testing
Testing Parameters
Parameter Range
Number of Tests 0-999,999 (presettable)
Test Rate 5-12 times/min (presettable, default 6 times/min)
Test Stroke 0-200mm
Test Speed 0-300mm/min
