Electric Blanket Heating Wire Flexing Test Apparatus 0.33m/S

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 days
Payment Method: T/T,Western Union
Supply Capacity: 20 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2302B
Applied Standard:
IEC60335-2-17: 2019 Figure 110
Applied UUT:
Heating Element / Internal Wiring
Load Current:
50mA
Testing Distance:
1000
Control Method:
PLC Control, Touchscreen Operation
Test Frequency:
0 - 999999, Pre-settable
Testing Speed:
0.33 Meter Per Second
Alarm Function:
Wire Breakage Alarm
Product Description

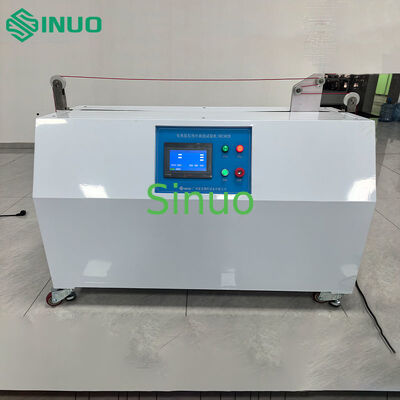

Electric Blanket Heating Wire Flexing Test Apparatus 0.33m/S
This specialized testing equipment evaluates the bending resistance and electrical safety characteristics of heating elements and internal wiring within flexible electric blanket components.
Compliance Standards
GB/T4706.8-2024 - "Safety of household and similar electrical appliances - Part 8: Particular requirements for electric blankets, electric pads, electric clothing and similar flexible heating appliances" Section 21.111.1

IEC60335-2-17:2019 - "Household and similar electrical appliances-Safety-Part2-17:Particular requirements for blankets, pads, clothing and similar flexible heating appliances"
Electric Blanket Heating Wire Flexing Test Apparatus 0.33m/S 0
Application & Test Principle
Sample Type: Heating element and internal wiring inside the flexible component of electric blankets
Application: Tests bending resistance of internal wiring within flexible components and verifies whether insulation sleeves maintain safe electrical characteristics.
Test Principle: PLC-controlled system where a motor drives a two-wheeled trolley to move the power cable back and forth at 0.33 m/s with low current (≤50 mA). The machine automatically stops when the sample wire breaks or the required test cycles are completed.
Equipment Specifications
Dimensions: Approximately 1400 × 800 × 1450 mm (W×D×H)
Weight: 180kg
Design: Floor-standing design with motor-driven trolley performing reciprocating motion, operated via touchscreen interface.
Operating Environment
Power Supply: AC220V±10%/50-60Hz
Temperature: 0-40℃
Humidity: 30%-90%
Technical Characteristics
Parameter Specification
Workstation Single station
Control and Operation PLC control, touchscreen operation
Sample Length According to sample length
Load Current 50mA
Test Speed 0.33 m/S
Test Stroke Length 1000mm
Test Frequency 0 - 999,999, pre-set
Pulley Diameter Two pulleys with R4 radius grooves at top and Φ25mm diameter groove bottoms (customizable)
Combined Weights Two 0.25kg weights, two 0.5kg weights, and several 0.1kg weights (to straighten the wire)
Wire Breakage Alarm Automatic alarm and shutdown when no current flows during test
Safety Protection Includes leakage protection, overload protection, and emergency stop protection
Equipment Details
Electric Blanket Heating Wire Flexing Test Apparatus 0.33m/S 1 Electric Blanket Heating Wire Flexing Test Apparatus 0.33m/S 2 Electric Blanket Heating Wire Flexing Test Apparatus 0.33m/S 3
