IEC 60884-1 Screwless Terminals Deflection Test Apparatus Test Current Max. 100A
  • name
  • name
  • name
  • name

IEC 60884-1 Screwless Terminals Deflection Test Apparatus Test Current Max. 100A

MOQ: 1
Price: Negotiable
Standard Packaging: Plywood Case
Delivery Period: 15 Days
Payment Method: T/T
Supply Capacity: 20 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2112
Applied Standard:
IEC 60884-1
Applied Figure:
Figure 14
Deflection Angle:
0-360°
0-360°:
12 Directions
Deflection Force:
0.25N, 0.5N, 1.0N
Force Direction:
Perpendicular
Test Current:
Max.100A
Power Supply:
Customized
Highlight:

IEC 60884-1 screwless terminals tester

,

deflection test apparatus 100A

,

switch life test current equipment

Product Description

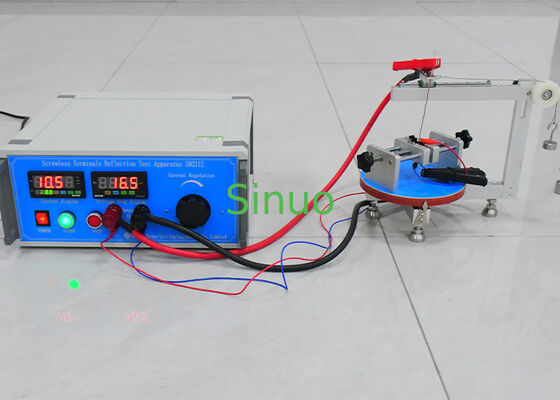

IEC 60884-1 Screwless Terminals Deflection Test Apparatus Test Current Max. 100A
Product Overview

The Screwless Terminals Deflection Test Apparatus is a high-precision testing equipment designed to verify the clamping reliability and electrical contact performance of screwless terminals under mechanical stress.

Compliant with international standards including IEC 60884-1:2022 Clause 12.3.11 & 12.3.12 and IEC 60669-1 Clause 12.3.11, this tester is widely used in electrical plug & socket testing, switch testing, and quality inspection laboratories.

During installation, conductors may experience deflection. This equipment simulates real installation conditions by applying defined forces and angles, ensuring that the conductor remains securely clamped while maintaining stable electrical performance.

Key Features
  • Full Compliance with IEC Standards: Designed according to IEC 60884-1 and IEC 60669-1 requirements
  • High Current Capability (Up to 100A): Accurate simulation of real working conditions for reliable test results
  • Multi-Directional Deflection Testing: 12 directions with precise angular control (30° intervals)
  • Adjustable Deflection Force: Supports multiple force levels (0.25N / 0.5N / 1.0N)
  • Voltage Drop Measurement: Effectively evaluates contact performance and clamping stability
  • User-Friendly Operation: Simple setup with standard-compliant fixture design
Technical Specifications
Parameter Name Specification
Power Supply Customized to local power conditions
Rated Power Supply AC 220V ±10%, 60Hz
Deflection Angle 0° - 360°
Deflection Direction 12 directions (30° ±3° intervals)
Deflection Force 0.25N / 0.5N / 1.0N
Force Application Perpendicular to undeflected conductor
Test Current Max. 100A
Frequently Asked Questions
Is the deflection force adjustable?
Yes, the device provides three selectable force levels: 0.25N, 0.5N, and 1.0N, enabling flexible testing based on different standards and product requirements.
Can the equipment be customized for different power supplies?
Yes, the power supply can be customized according to your local electrical conditions, ensuring compatibility and safe operation in your region.
What industries commonly use this test equipment?
This tester is widely used in:
• Electrical plug and socket manufacturing
• Switch and accessory production
• Testing laboratories and certification bodies
• Quality inspection and R&D departments
Is the equipment easy to operate?
Yes, the apparatus is designed with user-friendly controls and standard-compliant fixtures, allowing operators to perform tests efficiently with minimal training.
IEC 60884-1 Screwless Terminals Deflection Test Apparatus Test Current Max. 100A 0
IEC 60884-1 Screwless Terminals Deflection Test Apparatus Test Current Max. 100A 1
IEC 60884-1 Screwless Terminals Deflection Test Apparatus Test Current Max. 100A 2
Tags:

switch endurance tester,

Switch tester,

plug socket tester
