IEC 60670-1:2024 High And Low Pendulum Hammer Impact Test Apparatus

MOQ: 1
Price: Negotiable
Standard Packaging: plywood case
Delivery Period: 30 days
Payment Method: T/T
Supply Capacity: 5 set per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2122C
Striking Elements:
IK01-IK11
Equivalent Mass:
250g, 500g, 1.7kg , 5 Kg，10kg
Pendulum Tube:
Length 1000㎜,outer Diameter 9mm And 15.9 Mm
Impact Stroke:
200-1200mm
Sample Fixture:
A Sheet Of Plywood 8mm Thick And 175 Square
Control Mode:
Electrical Mode, Driven By Motor
Highlight:

IEC 60670-1 pendulum hammer tester

,

high low impact test apparatus

,

electrical appliance impact testing equipment

Product Description

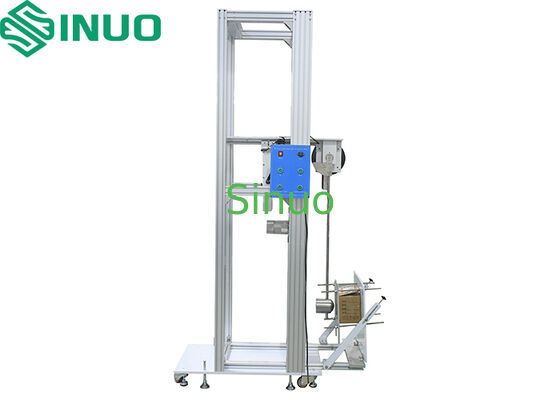

IEC 60670-1:2024 High And Low Pendulum Hammer Impact Test Apparatus
This test apparatus is designed for impact resistance testing of household and similar electronic and electrical products and their accessories, including plugs, sockets, wall-mounted mounting boxes, screw glands, covers, switches, and lamps. The equipment assesses product safety performance and strength levels.
Compliance Standards
  • IEC60068-2-75:2014 "Environment testing for electric and electronic products Part2: Test methods - Test Eh: Hammer tests IDT"
  • IEC60598-1:2017 "Luminaries-Part1: General requirements and tests"
  • EC62262:2002 "Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code)"
  • IEC 60670-1:2024 "Boxes and enclosures for electrical accessories for household and similar fixed electrical installations - Part 1: General requirements" figure 23
Structural Design
The high-energy pendulum impact test device features a trolley structure with left-right mobility. Upper and lower impact point heights are adjustable via screw guide mechanisms, with impact angles adjustable from 0 to 90°. The striking element is released from specific heights through a 1-meter pendulum tube, impacting specimens at the lowest vertical point. This converts gravitational potential energy to kinetic energy for effective impact testing.
Technical Parameters
Parameter Specification
Striking Elements (Energy/J) 0.14J (IK01), 0.2J (IK02), 0.35J (IK03), 0.5J (IK04), 0.7J (IK05), 1J (IK06), 2J (IK07), 5J (IK08), 10J (IK09), 20J (IK10), 50J (IK11)
Equivalent Mass kg 250g, 500g, 1.7kg, 5 kg, 10 kg for 2J, 5J, 10J, 20J, 50J ( refer to Table 1)
Striking Elements Material Steel
Pendulum Tube Length 1000㎜, outer diameter 9mm and 15.9 mm, wall thickness 1.5 mm steel pipe
Impact Point Electrically adjustable up and down, stroke: 200-1200mm
Height of Fall 0-500mm, scale display
Sample fixture for IEC 60670-1:2024

A sheet of plywood 8mm thick and 175 square

IEC 60670-1:2024 High And Low Pendulum Hammer Impact Test Apparatus 0   IEC 60670-1:2024 High And Low Pendulum Hammer Impact Test Apparatus 1
Lifting Electrical mode, driven by motor
Impact element release method Electromagnetic release
Base plate Thicken load-bearing steel base plate
Way of moving With casters, can be moved to sample impact point position
Anti-secondary impact function Yes
Technical Diagrams
IEC 60670-1:2024 High And Low Pendulum Hammer Impact Test Apparatus 2 IEC 60670-1:2024 High And Low Pendulum Hammer Impact Test Apparatus 3
IK Code and Energy Relationship
IK Code IK00 IK01 IK02 IK03 IK04 IK05 IK06 IK07 IK08 IK09 IK10 IK11
Energy / J a 0.14 0.2 0.35 0.5 0.7 1 2 5 10 20 50
Note 1: If higher impact energy is required, the recommended value is 50J.
Note 2: Some other standards use a single digit to indicate the specified impact energy. To avoid mixing with it, the feature number is represented by two digits.
a: Unprotected according to this standard
Tags:
