IEC60695-11-5 Needle-flame Test Method Fire Hazard Testing Apparatus
  • name
  • name
  • name

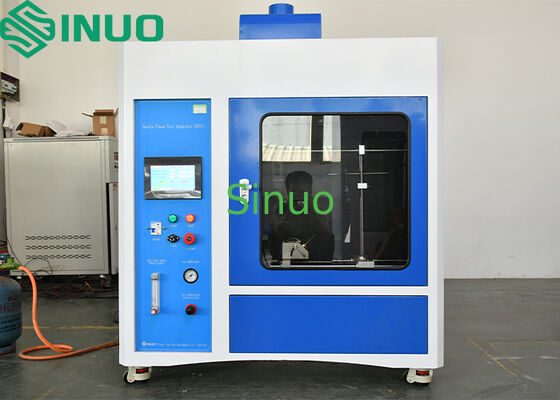

IEC60695-11-5 Needle-flame Test Method Fire Hazard Testing Apparatus

MOQ: 1
Price: Negotiable
Standard Packaging: Plywood case
Delivery Period: 30 days
Payment Method: T/T
Supply Capacity: 10 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN773
Control Mode:
PLC Touch Screen
Timing Device:
9999X0.1S
Combustor Inner Bore:
φ0.5mm ± 0.1mm
Combustor Outer Diameter:
≤φ0.9mm
Combustion Angle:
Tilt 45°( Testing ) Or Vertical
Temperature Range:
0~1000℃
Highlight:

IEC60695-11-5 needle-flame test apparatus

,

fire hazard testing equipment

,

electrical appliance flame test device

Product Description
IEC60695-11-5 Needle-flame Test Method Fire Hazard Testing Apparatus
The Needle Flame Tester evaluates fire hazards in electrical equipment by simulating fault conditions that may cause internal flames. This apparatus assesses whether specimens ignite and measures combustion duration and spread.
Product Overview
This testing apparatus features a 0.9mm needle-shaped burner tilted at 45° and fueled by butane gas. It conforms to IEC60695-11-5 standards and is required by IEC60335-1 clause 30.2.3.2 and Annex E.
Key Features
  • PLC control system with 7-inch color touch screen interface
  • Precision flame control with adjustable height and temperature monitoring
  • Automatic test procedure control with independent air draft system
  • Stainless steel construction with 0.5 cubic meter workspace
  • Comprehensive timing and temperature measurement capabilities
Applications
Ideal for research, production, and quality testing departments in various industries including:
  • Lighting equipment and low-voltage apparatus
  • Household appliances and machine tool electrical components
  • Electric tools, motors, and electronic instruments
  • Electrical connectors and insulating materials
  • Engineering plastics and solid combustible materials
Technical Specifications
Parameter/Model SN773
Working Voltage AC 220V/50Hz
Control System PLC
Display 7 inch color touch screen
Timing Device 9999×0.1S
Combustor Stainless steel, inner bore φ0.5mm ± 0.1mm, OD ≤φ0.9mm, L ≥ 35mm
Combustion Angle 45° tilt (testing) or vertical (flame height adjustment)
Flame Height 12±1mm adjustable (with flame height gauge)
Gas Category 95% butane gas (bottled lighter gas compatible)
Temperature Range 0~1000℃
Flame Warming Requirement 100° to 700° within 23.5S±1S
Temperature Thermocouple φ0.5 armor nickel-chromium/nickel aluminum wire K-Thermocouple
Workshop 0.5 cubic meter, stainless steel case, black background
Testing Process Automatic control with independent air draft
Volume Size Adjustment Flowmeter adjustment
Equipment Dimensions & Weight 1100mm × 550mm × 1100mm, 120kg
Conforms to Standards IEC 60695-11-5, IEC60335-1, etc.
Included Accessories
  • White Pine Test Board
  • Five Sheets of Tissue Paper
  • Flame Height Gauge
