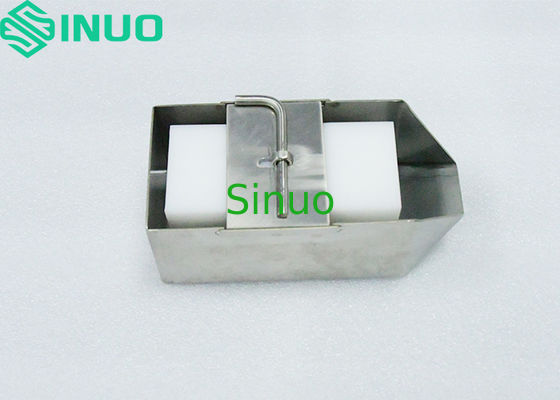

Refrigerator Spillage Test Apparatus for Electrical Safety
| Applied Standards: | IEC 60335-2-15:15.2, 15.102, 15.103, Etc | Test Samples: | Refrigerating Appliances |
| Container Dimensions: | 155*70*60mm | Displacement Block Dimensions: | 112*50*25mm |
| Displacement Block Weight: | 200g±10g | Spillage port size: | 30mm |
| High Light: | refrigerator spillage test apparatus,electrical safety testing equipment,appliance validation test apparatus |
||
The spillage test apparatus is designed to validate the electrical safety of refrigerating appliances in compliance with international standards including IEC 60335-2-15, IEC 60335-2-24, IEC 60335-2-14, IEC 60335-2-25, and IEC 60335-2-89.
Compatible with refrigerating appliances including:
- Refrigerators
- Ice-cream appliances
- Ice-makers
This apparatus tests refrigerating appliances to ensure spillage of liquids from containers onto cabinet walls or tops does not compromise electrical insulation integrity.
| Component | Specification |
|---|---|
| Stainless steel container dimensions | 155×70×60mm |
| Displacement block dimensions | 112×50×25mm |
| Displacement block weight | 200g±10g |
| Spillage port size | 30mm |
| Height from spillage port to bottom | 30mm |
| Release method | Manual |
