1.8 Kg Test Vessel With An Aluminum Base Diameter 120mm

Basic Properties
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN1130
Trading Properties
Minimum Order Quantity: 1
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30 sets per month
Tags

electrical test equipment

electrical appliance tester

IEC test equipment
Specifications
Applied Standards: IEC 60335-2-9 Applied Clause: Clause 21.101
Vessel Diameter: 120mm±10mm Edge Radius: At Least 10mm
Total Mass: 1.8 Kg ±0.01kg Steel Ball Weight Mass: At Least 1.3 Kg
High Light:

1.8 kg test vessel aluminum base

,

120mm diameter test vessel

,

electrical testing equipment with warranty
Product Description
1.8 Kg Test Vessel With An Aluminum Base Diameter 120mm
This precision test vessel is designed for compliance with electrical appliance safety testing standards.
Product Specifications
Conforms to standard requirements of IEC 60335-2-6 clause 21.102, IEC 60335-2-9 clause 21.101
  • Flat copper or aluminum base with 120mm±10mm diameter
  • Edges rounded with minimum 10mm radius
  • Uniformly filled with at least 1.3 kg of sand or shot
  • Total mass: 1.8 kg ±0.01kg
1.8 Kg Test Vessel with Aluminum Base - Technical Diagram

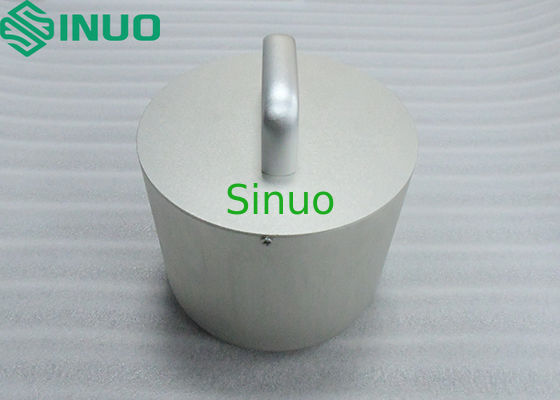

1.8 Kg Test Vessel - Product Photo
