 Vessels For Induction Hob Elements IEC 60335-2-6:2018 Figure 102

Basic Properties
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN1115A
Trading Properties
Minimum Order Quantity: 1
Price: Negotiation
Payment Terms: T/T
Supply Ability: 20 sets per month
Tags

electrical test equipment

electrical appliance tester

IEC test equipment
Specifications
Applied Standards: IEC 60335-2-6 Figure 102, IEC 60335-2-9 Figure 104 Vessels Size: Ф110、Ф145、Ф180、Ф220、Ф300 Mm
Vessels Material: Low Carbon Steel Carbon Content: Maximum 0.08%
Wall Thickness: 2±0.5 Mm Vessels Function: Cooking Oil Heating Test
High Light:

induction hob test vessels

,

IEC 60335-2-6 compliant vessels

,

electrical appliance testing equipment
Product Description
Vessels For Induction Hob Elements IEC 60335-2-6:2018 Figure 102

Product information:

These vessels for induction hob elements conform to the standard requirements of IEC 60335-2-6:2018 figure 102 and IEC 60335-2-9:2016 clause 3.1.9.108 figure 104. Each set includes 5 pieces with diameters of Ф110 mm, Ф145 mm, Ф180 mm, Ф220 mm, and Ф300 mm.

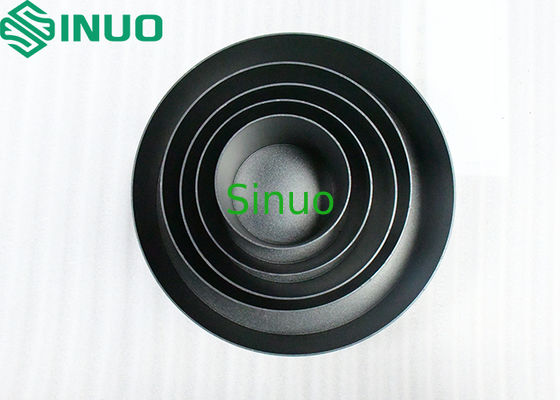

Set of induction hob test vessels
Product Specifications
Material Low carbon steel with maximum carbon content of 0.08%
Dimensions (mm)
Ф110: 140×(2±0.5)
Ф145: 140×(3±0.5)
Ф180: 140×(3±0.5)
Ф220: 120×(3±0.5)
Ф300: 100×(5±0.5)
Wall Thickness (mm) 2±0.5
Maximum Concavity C≦0.006d, not to be convex
Shape & Configuration Cylinder without metallic handles, protrusions, or cover
These vessels simulate cooking appliances placed on induction hotplates. Made from low carbon steel with maximum 0.08% carbon content, they are designed for precise testing and measurement applications.
Induction hob test vessel in use
