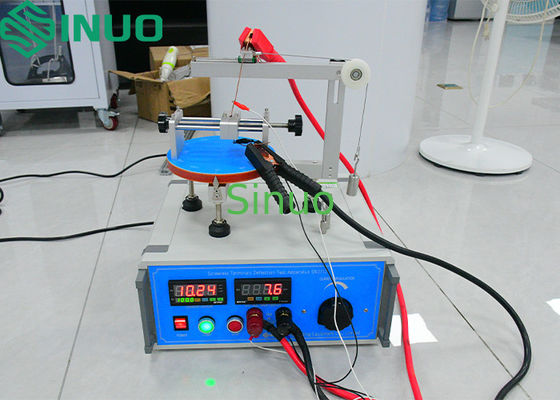

Screwless Terminal Clamping Capacity Test Apparatus IEC 60884-1 Clause 12.3.11
| Deflection angle: | 0-360° | Deflection force: | 1N, 0.5N, 0.25N |
| Deflection direction: | Any Of 12 Directions, Spaced 30° ±3° Apart | Test current: | Up To 100 A |
| Test Sample: | Screwless Terminals | Test Content: | Deflection And Voltage Drop |
| High Light: | Screwless Terminal Clamping Capacity Test Apparatus,Terminal Clamping Capacity Test Apparatus |
||
Screwless Terminal Clamping Capacity Test Apparatus IEC 60884-1 Clause 12.3.11
Product information:
This device is designed in compliance with IEC 60884-1:2022 (clauses 12.3.11, 12.3.12, and Figure 14) and IEC 60669-1 clause 12.3.11, etc.
It is intended to verify whether screwless terminals can securely retain rigid solid conductors, even after the conductors have been deflected during normal installation. The test involves deflecting the conductor and measuring the voltage drop, thereby assessing the clamping capability and contact performance of the terminal.
The device features simple operation, adjustable load current, and a sample fixture built in accordance with standard specifications.
Technical parameters:
| Name | Data |
| Power supply | AC 220 V ±10%, 60 Hz Match client's local power supply conditions |
| Deflection angle | 0-360° |
| Deflection direction | In any of the 12 directions differing from each other by 30°±3° |
| Deflection force | 0.25N, 0.5N, 1.0N |
| Force Application | Perpendicular to the conductor's original axis |
| Test current | Up to 100 A |
