IEC 62196-1 Rewireable Plugs and Vehicle Connector Mechanical Strength Testing Equipment
  • name
  • name
  • name
  • name

IEC 62196-1 Rewireable Plugs and Vehicle Connector Mechanical Strength Testing Equipment

MOQ: 1
Price: Negotiable
Standard Packaging: Plywood Case
Delivery Period: 20 Days
Payment Method: T/T
Supply Capacity: 30 Sets Per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SNQC1014
Applicable Standards:
IEC 62196-1
Applicable Clause:
Clause 26.3, Fig 19
Dropping Height:
1000mm
Dropping Times:
8 Times
Rotating Device:
45°
Size:
2443*360*1132mm
Product Description



IEC 62196-1 Rewireable Plugs and Vehicle Connector Mechanical Strength Testing Equipment





Product information:



This testing device is required by IEC 62196-1:2022 clause 26.3, fig 19.

It is used to test the mechanical strength of rewirable plugs and vehicle connector which is equipped with flexible cable.

Test principle is that the free end of the cable and an additional rope or other flexible means, etc., attached to the flexible cable, both having a total length of 2,25 m, is fixed to a wall at a height of 1 m above the floor.

The sample is held so that the cable is horizontal and then it is allowed to fall on to a concrete floor. This is done eight times; the cable being rotated through 45° at its fixing each time.





Technical parameters:


1. The height of dropping: 1000mm

2. Dropping times:8

3. Rotating device:45°, it can be rotated in all sides.

4. Size:L*W*H 2443*360*1132mm

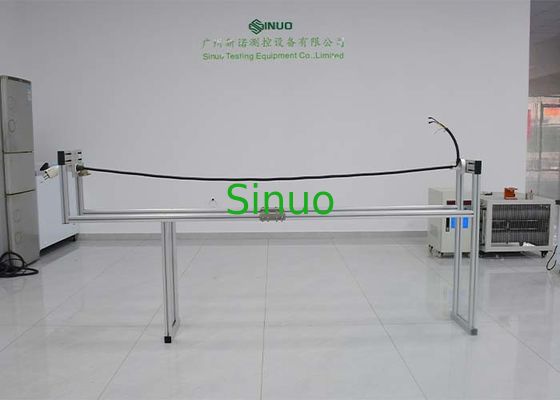

IEC 62196-1 Rewireable Plugs and Vehicle Connector Mechanical Strength Testing Equipment 0



IEC 62196-1 Rewireable Plugs and Vehicle Connector Mechanical Strength Testing Equipment 1



IEC 62196-1 Rewireable Plugs and Vehicle Connector Mechanical Strength Testing Equipment 2

Tags:

automotive test equipment,

car test equipment,

automobile testing equipment
