IEC 62552 2015 Refrigerator Door Switch Durability Tester

MOQ: 1
Price: Customized
Standard Packaging: Plywood Case
Delivery Period: 30 Days
Payment Method: T/T
Supply Capacity: 10 sets per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate(Cost Additional )
Model Number
SN1201-2A
Test Items:
Durability Test Of Vertical Refrigerator Door Interlock Device (compatible With Both Left And Right Opening)
Test Station:
Single Station, Capable Of Testing One Refrigerator At A Time, Left And Right Doors Cannot Be Tested Simultaneously
Robotic Arm:
Two Sets Of Door-opening Robotic Arms, Connected To Suction Cups Via Flexible Ropes
Suction System:
Two Sets Of Suction Cups With Stable Continuous Adhesion To Prevent Detachment
Door Switch Cycles:
0-999,999 Cycles, Touchscreen Setting, Adjustable
Door Opening Angle:
0°-70°,Touchscreen Setting, Adjustable
Door Opening Speed:
0-360°/s，Pre-settable
Door Open/Close Rate:
10-25 Times/min, Touch Screen Setting, Adjustable
Highlight:

IEC 62552 Door Switch Durability Tester

,

Refrigerator Door Switch Durability Tester

Product Description

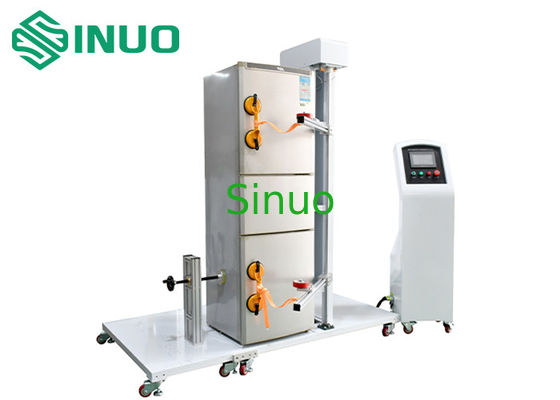

IEC 62552:2015 Refrigerator Door Switch Durability Tester







Product Information:



The Refrigerator Door Switch Durability Tester is designed and manufactured in accordance with IEC 62552:2015 Chapter 10 and customized customer requirements. It is used for the durability testing of vertical doors on upright freezers and for performing door opening and closing actions in conjunction with refrigerator energy efficiency performance testing. This fully automated specialized testing equipment is suitable for testing and certification agencies, factory laboratories, and other testing departments.



Equipment Principle:



· Door Opening Action: A servo motor drives the robotic arm, pulling a flexible rope to move the suction cup-attached door from 0° to 5–15° in a controlled manner. After this, the door continues moving freely until it reaches the required restricted angle.

· Door Closing Action: The servo motor drives the robotic arm, and the pressure roller pushes the door from 45° to 40–35° in a controlled manner. The door then moves freely until it is fully closed.

· Each complete cycle consists of one door opening and one door closing action.



IEC 62552 2015 Refrigerator Door Switch Durability Tester 0



Technical Parameters:





No. Item Description
1 Input Power AC220V 50HZ, 5kW
2 Electrical Control Mitsubishi PLC intelligent control
3 User Interface WEINVIEW 7-inch color HMI touchscreen operation
4 Drive System Servo Motor
5 Applicable Test Sample Range WDH=(0.5~1.0m)×(0.5~0.7m) ×(0.8~2.0m)
6 Test Items Durability test of vertical refrigerator door interlock device (compatible with both left and right opening)
7 Test Station Single station, capable of testing one refrigerator at a time, left and right doors cannot be tested simultaneously
8 Robotic Arm Two sets of door-opening robotic arms, connected to suction cups via flexible ropes
9 Suction System Two sets of suction cups with stable continuous adhesion to prevent detachment
10 Door Switch Cycles Touchscreen setting, 0-999,999 cycles, Adjustable, auto shutdown upon reaching the preset value
11 Door Opening Angle 0°-70°,Touchscreen setting, Adjustable
12 Door Open/Close Pause Time 0 -99,999.9 s,Touchscreen setting, Adjustable
13 Door Opening Speed 0-360°/s,Pre-settable
14 Door Open/Close Rate 10-25 times/min, touch screen setting, adjustable
15 Refrigerator Positioning Mechanism One set, used to fix the refrigerator’s side and back
16 Safety Protection Emergency stop, leakage protection, short-circuit protection, overload protection
17 Equipment Dimensions & Weight

Main frame: W1800* D1150 * H2150 mm, approx. 300kg

Control cabinet: W500* D600* H1200 mm, approx. 100kg

IEC 62552 2015 Refrigerator Door Switch Durability Tester 1IEC 62552 2015 Refrigerator Door Switch Durability Tester 2IEC 62552 2015 Refrigerator Door Switch Durability Tester 3
