IEC 60884-1 Figure 14 Screwless Terminals Deflection And Thermal Stress Test Apparatus
  • name
  • name
  • name
  • name

IEC 60884-1 Figure 14 Screwless Terminals Deflection And Thermal Stress Test Apparatus

MOQ: 1
Price: Negotiable
Standard Packaging: Carton
Delivery Period: 25 Days
Payment Method: T/T
Supply Capacity: 30 Sets Per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2112B
Deflection Angle:
0-360°
Deflection Direction:
30°±3°
Deflection Force:
0.25N, 0.5N, 1.0N
Number Of Trials:
192 Cycles
On/off Time:
30 Minutes, Can Be Preset
Test Current:
AC 1~99.9A±(3%±1A)
Voltage Drop Range:
0~199.9±（3%±1mv）
Judgment Criteria:
Not Exceed 22.5mV
Highlight:

Thermal Stress Screwless Terminals Test Apparatus

,

Screwless Terminals Deflection Test Apparatus

Product Description



IEC 60884-1 Figure 14 Screwless Terminals Deflection And Thermal Stress Test Apparatus





Product Information:



This device complies with IEC 60884-1:2022 clause 12.3.11 a) and b), clause 12.3.12 and figure 14, IEC 60669-1 clause 12.3.11, etc.

It is used to use to check whether the screwless terminals connected rigid solid conductor remains clamped, even when it has been deflected during normal installation. Deflecting the conductor and measuring the voltage drop, to check the screwless terminal clamping capacity and contacting performance. And it is also used to verify whether the unthreaded terminals can withstand the electrical and thermal stresses that occur during normal use.

The device is easy for operating, the load current is adjustable, the sample fixture is manufactured according to the standard requirements.




Technical Parameters:



Parameters Name Parameter Data
Deflection Test
Power supply Match client's local power supply conditions
Deflection angle 0-360°
Deflection direction In any of the 12 directions differing from each other by 30°±3°
Deflection force 0.25N, 0.5N, 1.0N
Force applied direction Perpendicular to the undeflected conductor
Test current Max.100A
Thermal stress test
Number of trials (cycles) 192 cycles, can be preset
On/off time On: 30 minutes, off: 30 minutes, can be preset
Test current AC 1~99.9A±(3%±1A)；
Voltage drop measurement range 0~199.9±(3%±1mv)
Judgment criteria The voltage drop shall not exceed 22.5mV

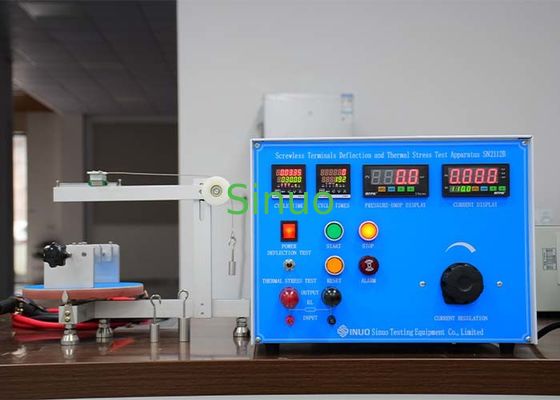

IEC 60884-1 Figure 14 Screwless Terminals Deflection And Thermal Stress Test Apparatus 0
