| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 7days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 20 Sets Per Month |

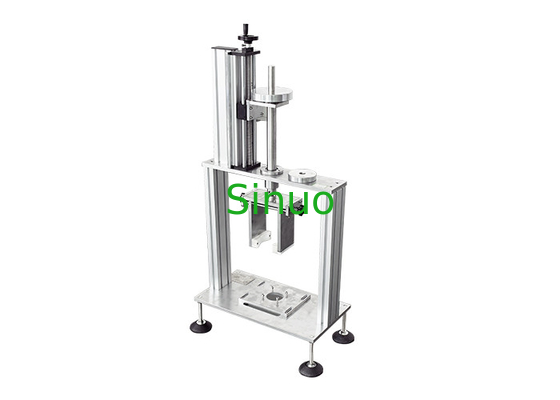

IEC 62196-1 New Energy Resources Automobile Socket Tension Test Device
Product overview:
IEC 62196-1Ed.4CDV 2020 Article 16.16 requires the use of this pullout force test instrument.
Test principle: The fixed accessory (socket or vehicle air intake) is installed in such a way that during the first stage of insertion, the mating accessory is moved vertically downward. A main weight of 9.2 kg is placed appropriately on the fitting attachment. If the mobile fitting does not enter the position required for the fixed fitting, the auxiliary weight of 0.8 kg is allowed to fall on the main weight from a height of 5 cm. Then, the moving fitting should enter the position required for the fixed fitting so that the contacts are properly engaged.
This product is used to test whether the maximum force required to pull a plug out of a receptacle or connecting device and the minimum force required to pull a unipolar plug out of a receptacle assembly are within the limits specified in the standard.
Technical parameters:
|
Insertion force test |
1. A fixed insertion force device for socket or appliance input socket |
|
2. Force weight kit: 9.2kg, auxiliary weight 0.8kg |
|
|
3. Drop height limit of auxiliary weight: 50mm |
|
|
4. 2kg weight |
|
|
Withdrawal force test |
1. Shared the mechanical part of SN11013, based on IEC 62196-1 :2020 Figure 13 |
|
2. Shared the test plugs for SN11013 |
|
|
3. Counterweight so that the lifting accessory (gauge + hook + weight) is 9 kg, with a supplementary weight of 1 kg |
|
|
4. 1kg weight |
|
|
