IEC 60061-3: 2007 G13 Double Ended Lamp Holder Go Gauge Measuring Gauges

Basic Properties
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN2101-G13
Trading Properties
Minimum Order Quantity: 1
Price: Customized
Payment Terms: T/T
Supply Ability: 20 sets per month
Tags

switch endurance tester

Switch tester

plug socket tester
Specifications
Applied standards: IEC 60061-3 Item No.: 7006-60C-3
Lamp type: 15W Diameter: 25mm
Brand: Sinuo Warranty: 1 Year
High Light:

IEC 60061-3-2007 Measuring Gauges

,

Double Ended Lamp Holder Measuring Gauges
Product Description

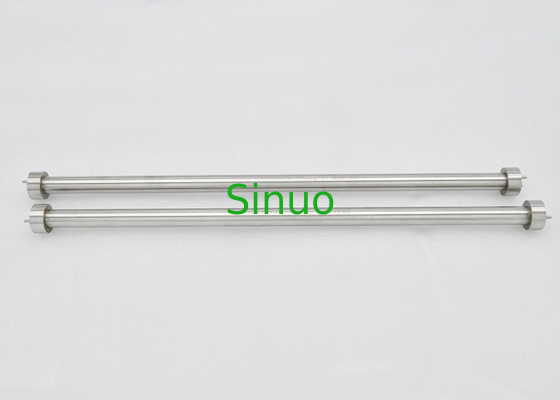

IEC 60061-3: 2007 G13 Double Ended Lamp Holder Go Gauge Measuring Gauges



Product Information For G13 Double Ended Lamp Holder:



The G13 Double-ended Lamp Holder Go Gauge is conforming to IEC 60061-3-2007, 7006-60C-3 Ⅰ and Ⅱ.

To check a combined pair of flexible or inflexible lampholders G13 with regard to entry of lamp pins.

It shall be possible to insert each gauge into a combined pair of lampholders. For the maximum forces to be applied see IEC Publication 400, Sub-clause 10.5.



Technical Parameters For G13 Double Ended Lamp Holder:



(1) This valus is equal to dimension A max. of a 15W lamp. (See IEC Publication 81: "Tubular fluorescent lamps for general lighting service".)
(2) Lampholders intended for lamps having a nominal diameter greater than 25 mm, shall in addition be checked with a simple measuring device (e.g. a plug) having a diameter in accordance with the required maximum cap shell diameter, shown as dimension A on sheet. 7004-51.

Notice For VDE G13 Double Ended Lamp Holder:


1. Please do not damage the appliance shape (such as scratching, bending, etc.).

2. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.

3. Add anti-rust oil regularly.



IEC 60061-3: 2007 G13 Double Ended Lamp Holder Go Gauge Measuring GaugesIEC 60061-3: 2007 G13 Double Ended Lamp Holder Go Gauge Measuring Gauges

IEC 60061-3: 2007 G13 Double Ended Lamp Holder Go Gauge Measuring Gauges
