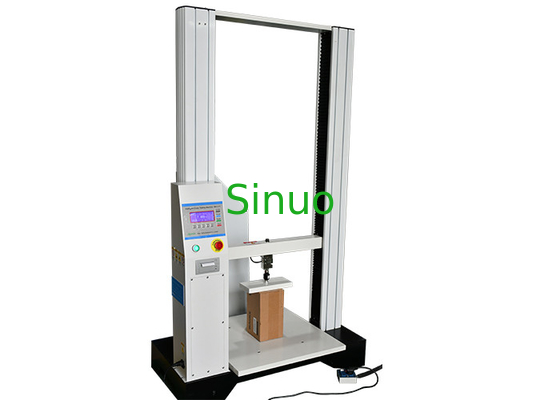

IEC 60950-1 Intelligent Crush Testing Equipment For Compressive Endurance Test
Product Overview For Intelligent Crush Testing Equipment:
This machine is the most direct test instrument for verifying the compressive strength of cartons or other packaging containers. It is used to determine the compressive strength of cartons, and can be used for steady pressure tests and crush tests. The results of the tests can be used as an important reference for the height of the finished product containers at the factory. The important basis for designing the packaging box. It can also be used to process testing as per IEC 60950-1:2013 clause 4.1, clause 4.2.10 and IEC60065:2014 clause 12.7.3.6, etc.
Principle For Intelligent Crush Testing Equipment:
The machine uses a motor drive screw to move the upper platen downwards, thereby compressing the sample; as a result, the force sensor is used in conjunction with the display to automatically display the strength value.
Technical Parameters For Intelligent Crush Testing Equipment:
| Capacity | 0~1T |
| Accuracy level | Level 1 |
| Control method | Controlled by microcomputer |
| Display method | Electronic LCD display |
| Power unit | kgf, gf, N, kN, lbf |
| Stress unit | Pa, kPa, MPa, kgf/cm2, lbf/in2 |
| Displacement unit | mm, cm, in |
| Power resolution | 1/100000 |
| Display resolution | 0.02N |
| Lifting stroke | 1200 mm |
| Press plate size |
125mm * 200mm as per IEC 60950 clause 4.1 102mm * 250mm as per IEC 60065 clause 12.7.3.6 |
| Bottom platen size | 600mm * 600mm * 60mm |
| Software function | English and Chinese are interchangeable |
| Shutdown mode | Overload shutdown, emergency stop button, automatic shutdown of test piece destruction, automatic shutdown of upper and lower limit settings |
| Safety equipment | Overload protection, limit element protection device |
| Machine power | AC variable frequency motor drive controller |
| Lifting rail | High precision ball screw |
| Power supply | AC120V/60Hz |
| Machine weight | Around 350KG |
| Performance characteristics | The percentage break value can be set, the machine will stop automatically, and the speeds can be preset when enter the menu. 40 results are available, the average of all test results and single results can be viewed. |
Environmental Requirements For Intelligent Crush Testing Equipment:
1 Room temperature: 20°C±10°C
2 Power: AC120V ± 22V, 6HZ, maximum current 1A, power supply should be reliably grounded.
3 The working environment is clean, there is no strong magnetic field and vibration source, and the worktable is flat and stable.
4 Relative Humidity: <85%
|
|
