| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Plywood |
| Delivery Period: | 35 days |
| Payment Method: | T/T |
| Supply Capacity: | 5 per month |

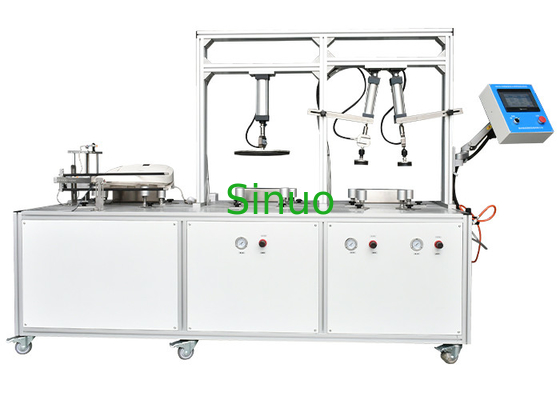

IEC 60335-2-84 Comprehensive Mechanical Strength Testing Machine For Toilet Seat
Standard For Comprehensive Mechanical Strength Testing Machine:
IEC 60335-2-84 "Household and similar electrical appliances. Safety. Part 2-84: Particular requirements for toilets"
JC/764-2008 "Toilet Seat and Cover"
Technical Parameter For Comprehensive Mechanical Strength Testing Machine:
| Test station | Three stations can test independently at the same time (1 station for swing test, 1 station for static pressure test, 1 station for opening and closing, slow down, and 1 station for strong pressure test) |
| Functional action and driving method | The swing test adopts the cylinder drive mode, the impact test adopts the cylinder drive mode, and the opening and closing, slow falling, and strong pressure tests adopt the servo motor drive mode (fixtures need to be replaced) |
| Swing and impact force mode | The cylinder is pressurized and regulated by regulating the gas valve through the pressure sensor |
| Load pressure sensor range and accuracy | 0～2000N Accuracy class 0.5 |
| Swing cylinder specifications | Cylinder inner diameter φ50mm, stroke 125mm |
| Press plate specification | Diameter φ76.2mm, thickness 19mm |
| Left and right force time | 0-99.9S (adjustable) |
| Left and right force angle | Angle of force is adjustable |
| Static cylinder specifications | The inner diameter of the cylinder is φ63mm, the stroke is 150mm, and the front end is connected with a steel block of Φ160mm*10mm (there is a rubber pad under the steel block, the thickness is 13mm, and the Shore hardness is 65±5) |
| Test frequency | 10-20 times/min |
| Opening and closing angle | ≥70°adjustable |
| Opening and closing time | 0-99.9S (adjustable) |
| Opening and closing motor | 400W Panasonic Servo |
| Control method | Weinview 7-inch touch screen + Mitsubishi PLC control |
| Structure | Industrial aluminum frame + platform |
| Size | About 2500X700X1400 mm |
| Test time | 0-999999 times can be set |
| Power supply | AC220V, 60Hz, 2KW |
Test Content For Comprehensive Mechanical Strength Testing Machine:
1. Opening and closing of the seat ring.
2. Slow-falling function life test.
3. Strong pressure test.
4. Swing test.
5. Static pressure test.
|
|
