IEC61851-1 EV Testing Equipment Conductive Charging System Static Load Test Bench

IEC61851-1 EV Testing Equipment Conductive Charging System Static Load Test Bench

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 days
Payment Method: T/T
Supply Capacity: 10 Sets per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2601
Range Of Force:
Top: 0-10KN
Speed Of Force:
0.1-50mm/s
Constant Force Time:
0-9999s
Loading Method:
Electric
Operation Method:
PLC Control And Touch Screen
Movable Range:
3 To 8 Degrees Of Freedom
Power Supply:
AC220V/50Hz
Dimensions:
W3300*D2000*H2550mm
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
30 days
Payment Terms:
T/T
Supply Ability:
10 Sets per Month
High Light:

IEC61851-1 Electric Vehicle Testing Equipment

,

Conductive Charging Vehicle Testing Equipment

Product Description



IEC61851-1 EV Conductive Charging System Static Load Test Bench



Product Information For Static Load Test Bench:



Comply with the standards and clauses of EN IEC 61851-1-2019, IEC 61851-1-2017. Used for mechanical strength test of electric vehicle charging piles and similar power supply equipment shells for charging vehicles



Test principle: Drive the electric cylinder through the servo motor to apply a certain force value to the top and side of the sample according to the standard requirements and keep it constant for a certain time to verify its mechanical strength

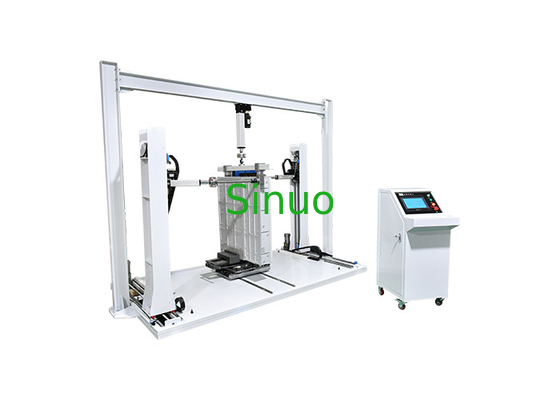

Structure and features: The machine adopt a frame structure, which is divided into a horizontal loading part and a vertical loading part. Each loading actuator can move freely in the plane with 3 degrees of freedom. The 3 actuators realize the mobile loading with 8 degrees of freedom in total.



Technical Parameters For Static Load Test Bench:



Operation method PLC control and touch screen operation
Drive Servo motor
Test items

1. Static load test on the top (0-10kn)

2. Lateral thrust test (0-1500N), two positions

Loading direction Horizontal 2-way, vertical 1-way (divided into horizontal loading part and vertical loading part. Each loading actuator can move freely in the plane, which is 3 degrees of freedom. 3 actuators achieve 8 degrees of freedom in total mobile loading)
Movable range 3 to 8 degrees of freedom
Loading method Electric
Range of force

Top: 0-10KN

Side: 0-1500N

Speed of force 0.1-50mm/s
Constant force time 0-9999s, can be preset
Power supply AC220V/50Hz
Way of moving Electric steel ball screw + precision linear guide rail adjustment mechanism
Use environment Dimensions: about W3300*D2000*h2550mm. Weight: about 450kg
