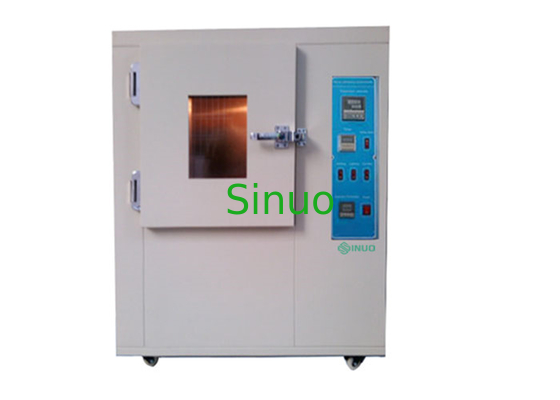

PID Digital Setting Heating Oven Natural Convection Oven

Heating Oven (Natural Convection Oven)

Product overview:

This device is required by IEC 60884-1:2013 clause 16.1, IEC 60669-1;2007 clause 15.1, etc. It is used to perform thermal aging test to polymer materials (plastics, plastics and electrical insulating materials such as: wire and cable sheathing, heat shrinkable tube, rubber test or PVC materials, and the insulating components, or use for drying, baking, heat treatment and so on.

Feature:

1. Adopts to microcomputer electronic digital control method, precise, accurate, stable and reliable.

2. The chamber insulation package is made of silicon, high temperature resistant, never aging; and an observation window is attached to facilitate the observation of the sample during the experiment.

3. P.I.D. control system, double over-temperature protection, safe and reliable.

4. The temperature setting is simple, and the operation is more convenient. Attachment tray, can be adjusted freely.

Parameters:

1. Temperature range: room temperature RT ~ 300 ° C

2. Inner chamber size: L 60cm * W 60cm* H 60cm

3. Temperature control: PID digital setting

4. Test shelves: two trays.

5. Timer: 0~9999H/ M / S

6. Temperature resolution: 0.1 ° C

7. Temperature fluctuation: ±1 °C

8. Distribution error: ±2.5 °C

9. Air circulation: natural convection

10. Natural ventilation: 8~20 times/hour

11.Test piece rotation speed 5~10r.p.m

12. Observation window: square window

13. Material: inner chamber SUS#304 stainless steel, outer chamber electrostatic spray paint

14. Machine weight: about 100 kg

15. Power supply: Single-phase AC 230V±10%, 50hz

16. Equipment dimensions: 1160mm×700mm×1245mm
