IEC 60335-2 Test Rod For Interlock Concealment Door Of Microwave Oven

IEC 60335-2 Test Rod For Interlock Concealment Door Of Microwave Oven
IEC 60335-2 Test Rod For Interlock Concealment Door Of Microwave Oven IEC 60335-2 Test Rod For Interlock Concealment Door Of Microwave Oven IEC 60335-2 Test Rod For Interlock Concealment Door Of Microwave Oven IEC 60335-2 Test Rod For Interlock Concealment Door Of Microwave Oven

Large Image :  IEC 60335-2 Test Rod For Interlock Concealment Door Of Microwave Oven

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN2210-29
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Customized
Packaging Details: Aluminium Box
Delivery Time: 3~5 Days
Payment Terms: T/T
Supply Ability: 100 pcs per month
Detailed Product Description
Standard: IEC 60335-2-25 Probe Diameter: Ф3
Handle Diameter: Ф10 Probe Length: 100±0.2
Handle Material: Nylon Rod Diameter: φ3mm
Brand: Sinuo Warranty: 1 Year
High Light:

IEC 60335-2 Test Rod

,

Interlock Concealment Door Test Rod

,

Microwave Oven Test Rod



IEC 60335-2 Test Rod For Interlock Concealment Door Of Microwave Oven



Standards For Test Rod For Interlock Concealment:



The test rod meets the standard requirements of IEC60335-2-25 clause 22.105 figure 101, EN61010-1, UL3101-1, UL3111-1 and CSA1010-1, etc.



Technical Parameters For Test Rod For Interlock Concealment:

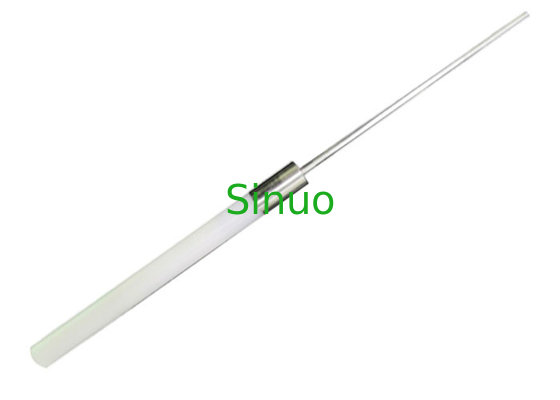

Diameter 3 mm,100mm long, the handle is made of nylon, the rod is hardened steel.

Rod diameter (mm) Ф3 0 -0.10
Handle diameter (mm) Ф10
Rod length (mm) 100±0.2




Samples and Restrictions For Test Rod For Interlock Concealment:



It is used for interlocking apparatus of the concealed door of microwave oven.



Test Procedures and Operation For Test Rod For Interlock Concealment:



The door is placed in the open or closed position and an attempt is made to operate the concealed door interlock by applying test probe B of IEC 61032 to all openings. The test is repeated with a rod, as shown in Figure 101, to any openings of the door interlock mechanism. Only one rod shall be used at a time.



Application For Test Rod For Interlock Concealment:



It is used to check the door interlocks shall be concealed and not operable by manipulation, This door interlock shall operate before any accessible door interlock can be defeated.



Structure For Test Rod For Interlock Concealment:


IEC 60335-2 Test Rod For Interlock Concealment Door Of Microwave Oven 0
