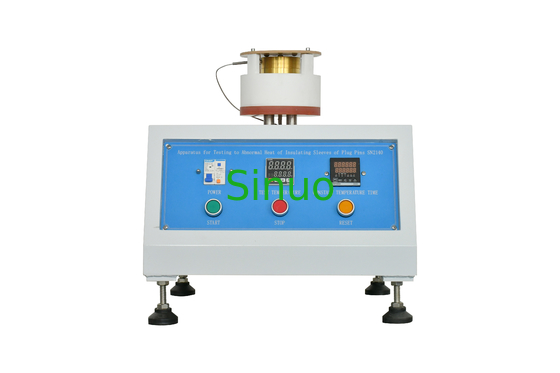

IEC60884-1 Apparatus For Testing To Abnormal Heat Of Insulating Sleeves Of Plug Pins
Product information:
This device meets the standards of IEC60884-1 clause28.1.2 figure 40. It is applicable to test improper heating resistance and burning resistance of plug pins and plug with insulation sleeve. Use a heating plate to heat the copper socket to simulate the abnormal heat of the plug and pin insulation sleeve, so as to test its heat resistance performance. It can imitate the insulated parts of which the plug-and-socket device’s safety performance may be damaged by electric heat stress. It should not be over damaged for exposure to overheating and under fire. This device is equipped with imported high-precision digital indicator, high quality thermocouple, and high-performance heating device, stable performance.
Technical parameters:
| Dimension | 400×400×450(mm) |
| Insulation board(mm) | Thickness 5 |
| Metal material | Brass |
| Power supply | AC220V±10%/50-60Hz |
| Temperature | 0-40℃ |
| Humidity | 30%-90% |
| Constant temperature time | 0-9999 hours,can be preset |
| Weight | 30kg |
| Heating temperature | Normal temperature 200°C±5°C |
1. Insulating plate A: 5 mm thickness round flat surface, the diameter of the two times as test product surface' diameter.
2. The metal part B (Fixture): the length is more than 20 mm, brass, five pieces, can be replaced; Gap between insulation board and metal parts B: 3 mm, ensuring surrounding cross-ventilation;
3. Distance between thermocouple and the metal parts B: 7 mm;
4. Bolt hole of Metal parts B: more than 0.1 mm;
5. Equipped with K-type electric heater, imported high-precision digital-display table.
6. Power supply: 220V AC, 50Hz
Come with a BS1363 13A socket-outlet gauge.
Fixture installation
1.Select the corresponding copper test seat and insulation panels according to the specimen, pay attention to the zero mark of the test seat is paralleled the mark bit of the heating base when installation.
2. The thermocouple is installed in the threaded hole of the test seat;
Timing and temperature presets
1. Preset the time and temperature as the required value refer to instrument setting method.
2. Press "START" button, the test apparatus is heated, it can be maintained in the preset temperature range about 30 min.
Test operation
1. Insert the specimen into the copper test seat after confirming the test temperature is stable, at the same time, press the reset time to start timing, the test apparatus will stop heating automatically when the testing time is up.
2. Remove the specimen and inspect according to related standard requirements.
|
|
