IEC 61851-1 Stainless Steel IPXXB Standard Test Finger With Alligator Clip

IEC 61851-1 Stainless Steel IPXXB Standard Test Finger With Alligator Clip

MOQ: 1
Price: Customized
Standard Packaging: Case
Delivery Period: 1 Month
Payment Method: T/T
Supply Capacity: 20 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2210-2
Model:
SN2210-2
Name:
Standard Test Finger
A-A Section Diameter:
Ф50 (mm)
A-A Section Width:
20±0.2 (mm)
Fingertip Taper:
14 O 0 -10’
Fingertip To Baffle:
180±0.2 (mm)
Baffle Diameter:
Ф75±0.2 (mm)
Baffle Thickness:
5±0.5 (mm)
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Case
Delivery Time:
1 Month
Payment Terms:
T/T
Supply Ability:
20 Sets Per Month
High Light:

IPXXB Standard Test Finger

,

Stainless Steel Standard Test Finger

,

Alligator Clip Standard Test Finger

Product Description

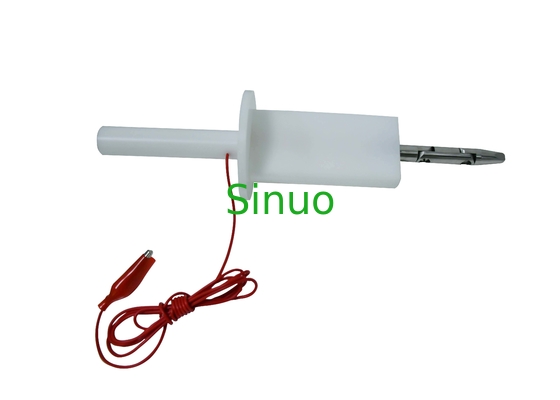

IEC 61851-1 Stainless Steel IPXXB Standard Test Finger With Alligator Clip



Product overview:



This is a precision test finger made in accordance with IEC61032 figure 2 test probe B, it is required by IEC 61851-1 clause 8 and 12.4,etc.



Application:



This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger.

This test finger probe consists of dito,finger,base and insulated handle which simulates the characteristics of the human hand. It has two movable joints, which can be curved at 90°.



Technical parameters:



Model SN2210-2
Name Standard test finger
Joint 1 30±0.2 (mm)
Joint 2 60±0.2 (mm)
Finger length 80±0.2 (mm)
Fingertip to baffle 180±0.2 (mm)
Cylindrical R2±0.05 (mm)
Spherical S4±0.05 (mm)
Fingertip cutting bevel angle 37o 0 -10’
Fingertip taper 14 o 0 -10’
Test finger diameter Ф12 0 -0.05 (mm)
A-A Section diameter Ф50 (mm)
A-A Section width 20±0.2 (mm)
Baffle diameter Ф75±0.2 (mm)
Baffle thickness 5±0.5 (mm)






IEC 61851-1 Stainless Steel IPXXB Standard Test Finger With Alligator Clip 0



IEC 61851-1 Stainless Steel IPXXB Standard Test Finger With Alligator Clip 1



Customizable:



It can be used for anti-electric shock test when equipped with alligator clip. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle to connect with a pull and push force gauge to achieve specific force.
