IEC 60335-1 Clause 22.3 Plug Torque Test Apparatus 0.25Nm To 0.4Nm Torque Force

Basic Properties
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate(cost additional )
Model Number: SN2107
Trading Properties
Minimum Order Quantity: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 100 Sets / Month
Tags

switch endurance tester

Switch tester

plug socket tester
Specifications
Standard Clause: IEC 60335-1 Clause 22.3 Test Sample: Plug
Balancing Arm: 0-250mm Hang Weight: 2.5N
Equipped Weight: 2.5N Torque Force: 0.25Nm ~ 0.4Nm
High Light:

Clause 22.3 Plug Torque Test Apparatus

,

IEC 60335-1 Plug Torque Test Apparatus

,

0.4Nm Torque Test Apparatus
Product Description

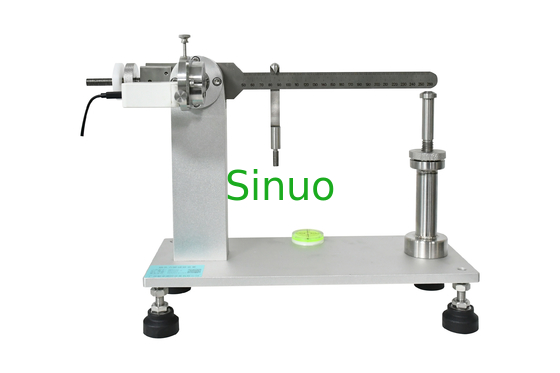

IEC 60335-1 Clause 22.3 Plug Torque Test Apparatus 0.25Nm To 0.4Nm Torque Force





Product information:



This apparatus conforms to IEC 60335-1 clause 22.3, IEC60065:2014 clause 15.4.1 and figure 11, IEC 60884-1 2013 clause 14.23.2, IEC60065 clause 15.4.1 and figure 11, etc.



This device is used to check the torque applied to the output socket after the device with the plug inserted into the fixed output socket is inserted into the output socket.

The device has good sensitivity, convenient adjustment, simple operation and beautiful appearance. Equipped with a variety of socket fixtures, strong practicability.



Technical Parameters:



Test Station Single
Specimen Eccentricity Distance from the contact surface and the Axis of the surface:8mm
Balancing Arm L:50-260mm
Weight 2.5N, can achieve 0.25Nm to 0.4Nm torque force
Torque Calculation Method G×L(such as 0.25N.m,use 2.5N weights and 100 mm arm)
Configure One of each universal socket (suit for GB and BS plug), UL socket, European socket







IEC 60335-1 Clause 22.3 Plug Torque Test Apparatus 0.25Nm To 0.4Nm Torque Force



IEC 60335-1 Clause 22.3 Plug Torque Test Apparatus 0.25Nm To 0.4Nm Torque Force
