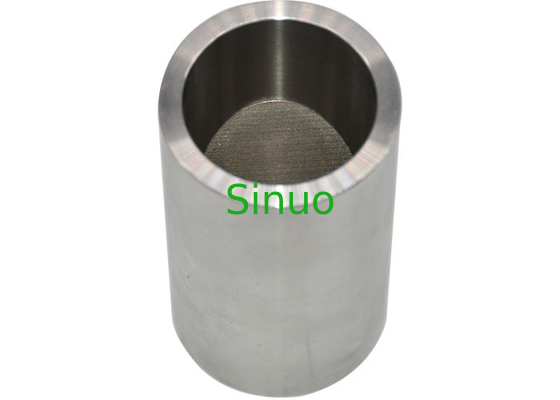

IEC 60335-1 2013 Clause 22.12 Figure 13 Small Parts Cylinder
| Test Standard: | IEC 60335-1 Clause 22.12 | Standard Figure: | Figure 13 |
| Cylinder Material: | Stainless Steel | Test Specimen: | Small Objects |
| Inner Diameter: | 31.7mm | Product Name: | Small Parts Cylinder |
| High Light: | Figure 13 Small Parts Cylinder,Clause 22.12 Small Parts Cylinder |
||
IEC 60335-1: 2013 cClause 22.12 Figure 13 Small Parts Cylinder
Standards & Clauses:
This small parts cylinder conforms to IEC60335-1: 2013 clause 22.12 figure 13, ISO 8124-1 clause 5.2 and fig. 15, etc.
It is used to check whether there is possibility that the small cells and batteries or children's products like the toys can be swallowed by the children under 36 months.
Samples and Restrictions:
Small objects of eletrical appliances (such as cell batteries) , toys
Application:
It is used to check whether there is possibility that the small cells and batteries or children's products like the toys can be swallowed by the children under 36 months.
Test Principle:
The testing object is placed into the tester from any directions. If it can reach to the button of the tester, the object is proved to be small object.
Material:
Stainless steel
Technical Parameters:
Test Procedures
Please refer to the relevant standards.
The testing object is placed into the small parts cylinder from any directions. If it can reach to the button of the small parts cylinder, the object is proved to be small object.
Notice
1. Please do not damage the appliance shape (such as scratching, dropping, etc.).
2. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.
