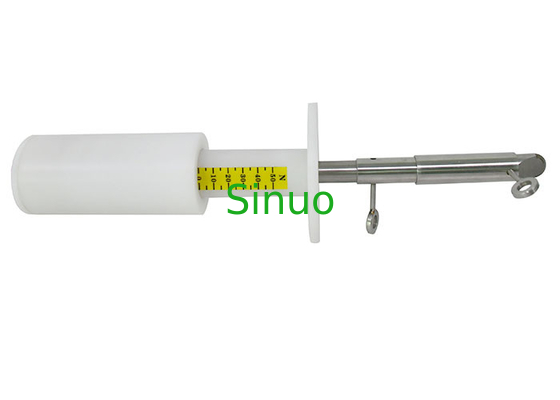

IEC 60335 Clause 22.11 50N Built - In Force Test Finger Nail
  • name
  • name
  • name
  • name

IEC 60335 Clause 22.11 50N Built - In Force Test Finger Nail

MOQ: 1
Price: Customized
Standard Packaging: Aluminium Box
Delivery Period: 15 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 50 sets per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2210-22
Applied Standard:
IEC 60335-1
Applied Clause:
Clause 22.11
Probe Material:
Stainless Steel
Handle Material:
Nylon
Applied Force:
0~50N
Force Resolution:
50N
Highlight:

50N Force Test Finger Nail

,

Clause 22.11 Force Test Finger Nail

,

IEC 60335 Force Test Finger Nail

Product Description



IEC 60335 Clause 22.11 50N Built - In Force Test Finger Nail



Product Overview:

The test fingernail confirms to the standard of IEC60335-1 clause 21.2, clause 22.11, Figure 7, etc. It is used to test non-detachable parts that protect against access to live parts, moisture or contact with moving parts shall be fixed in a reliable manner and withstand the mechanical stress occurring during normal use. Snap-in devices used for fixing such parts shall have an obvious locked position. It is dispensable for the electrical testing departments.



Technical Parameters:

The test fingernail consists of fingernail, finger body, stop plate, thrust block and pull-tab, thrust block can offer thrust of 0~50 N (resolution: 5N). The dimensions are coincided with that shown in following standard figure.

IEC 60335 Clause 22.11 50N Built - In Force Test Finger Nail 0



Test Procedures and Operation

Please refer to the relevant standards.

Take IEC60335-1 clause 21.2 as an example:

The test fingernail of Figure 7 is then applied to the scratched surface with a force of approximately 10 N.

The force is applied by pushing the top surface of the handle to the specific force scale line.

IEC 60335 Clause 22.11 50N Built - In Force Test Finger Nail 1

For verifying whether LIVE PARTS touched, the probe is equipped with an alligator clip, recommended to work with our anti-shock probe experiment device or a 40~50V voltage indicator.

IEC 60335 Clause 22.11 50N Built - In Force Test Finger Nail 2
