| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Standard Exporting Plywood Case |
| Delivery Period: | 20 Days |
| Payment Method: | T/T |
| Supply Capacity: | 30 Sets Per Month |

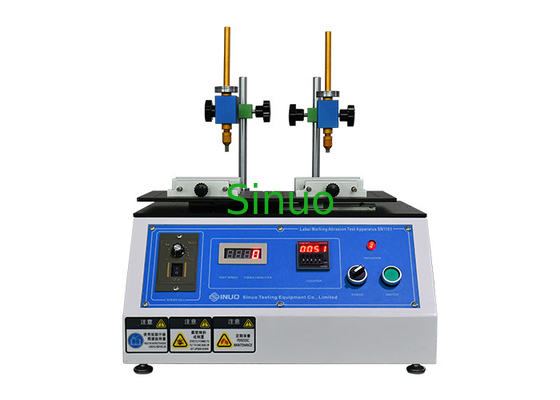

IEC 60950 Silk Screen Surface Marking Abrasion Test Equipment
Product information:
1. ThisSilk Screen Surface Marking Abrasion Test Equipment meets the requirements of IEC 60335-1 clause 7.14, IEC 60065:2014 clause 5.1, IEC 60950:2013 clause 1.7.11, IEC 60669-1 clause 8.9, etc.
2. It is suitable for all kinds of plastic injection, silk screen surface for abrasion test, such as: computer, mobile phone (PDA), MP3, CD/VCD/DVD, cordless telephone, electronic dictionary and other surface and printing surface.
3. A variety of clamping methods and a variety of abrasion methods, which is applicable to different test standards and samples.
4. With LED digital display counter, the number of tests can be arbitrarily set, the actual number of tests can be intuitive.
Technical parameters:
| Test stations | Two stations |
| Test stroke | 10-60mm, adjustable(Manually adjustable) |
| Speed | 5-60 times /min, adjustable |
| Counter | 0-9999 adjustable |
| Weight | Two sets of 10g, 20g,50g, 100g, 200g, 500g |
| Voltage | AC 220V, 50Hz, 5A |
| Machine size: | 510*450*480mm |
5 Maintenance Notes
5.1 The instrument must be placed on a stable surface before use.
5.2 It is not allowed to move the machine during use.
5.3 Select the appropriate power supply voltage, should not be too high, to avoid burning the instrument.
5.4 If the instrument works abnormal, please contact with us for timely processing.
5.5 The instrument must be used in a good ventilation environment.
5.6 Please add lubricating oil to the mechanical transmission part in time due to the large operating load of each component of the button mechanism.
5.7 After each test is completed, operator should clean the machine.
5.8 The control box part must be wiped with a dry cloth.
6 Troubleshooting
6.1 If the POWER is turned on, the instrument is not powered on or the power indicator is not light: if the power indicator is damaged, replace the indicator; if there is no power output at the power output terminal, please check the power cord or power socket-outlet.
6.2 If the power is turned on, the power indicator lights, but the machine does not work when operator presses the SWITCH button. Please check whether there is a disconnection. If there is a disconnection, please connect it in time. If there is no disconnection of the relay, indicating that the counter is damaged, the counter should be replaced in time.
6.3 When the number of times set on the counter is finished, but the motor does not stop working, indicating that the counter is damaged.
6.4 If the power indicator light is on but the counter has no display, it means that the counter is damaged and the counter needs to be replaced.
7 Configuration
| No.: | Name | Unit | Quantity | |
| 1 | Main device | Label Marking Abrasion Test Apparatus | Set | 1 |
| 2 | Accessory | Petroleum spirit/ alcohol abrasion test fixtures | PCS | 2 |
| Rubber head abrasion test fixtures | PCS | 2 | ||
| Pencil abrasion test fixtures | PCS | 2 | ||
| Cotton cloth | Pack | 1 | ||
| Rubber head | PCS | 2 | ||
| Pencil | PCS | 2 | ||
| 3 | Document | User manual | Copy | 1 |
| Certificate of quality | Copy | 1 | ||
| Warranty card | Copy | 1 | ||
|
|
