IEC 62552 Customized Stations Automatic Drawer Push And Pull Testing Machine

IEC 62552 Customized Stations Automatic Drawer Push And Pull Testing Machine

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Standard Exporting Plywood Case
Delivery Period: 30 days
Payment Method: T/T
Supply Capacity: 10 Sets/Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate(cost additional )
Model Number
SN1201C
Standard:
IEC62552:2015
Column:
Three Sets Of Upper And Lower Drive Cylinders
Test Project:
Drawer Switch Durability Test
Operation:
Weinview 7” Touch Screen
Size:
Can Be Customized
Sample Range:
WDH=(0.4~1.0m)×(0.4~1.0m)×(0.6~2.0m)
Drive Mode:
Cylinder
Warranty:
1 Year
Electrical Control:
Mitsubishi PLC Intelligent Control
Open-close Times:
Adjustable From 0-999999
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Standard Exporting Plywood Case
Delivery Time:
30 days
Payment Terms:
T/T
Supply Ability:
10 Sets/Month
Highlight:

Automatic Push And Pull Testing Machine

,

Customized Push And Pull Testing Machine

Product Description



IEC 62552 Customized Stations Automatic Drawer Push And Pull Testing Machine



Standard:

Drawer push-pull testing machine is designed and manufactured according to IEC62552: 2015 and customized requirements. It is used for the durability test of the drawer of the vertical freezer, and also used to cooperate with the energy efficiency performance test of the refrigerator to open and close the door. It is a dedicated fully automated testing equipment, suitable for testing and certification agencies, factory laboratories and other testing departments.



Technical parameter

No. Project Content
1 Input power source AC220V 50HZ, 5kW
2 Electrical control Mitsubishi PLC intelligent control
3 Operation interface Weinview 7-inch color human-machine interface touch screen operation
4 Drive mode cylinder
5 Sample range WDH=(0.4~1.0m)×(0.4~1.0m)×(0.6~2.0m)
6 Test project Drawer switch durability test
7 Test station 1 station, can test a refrigerator (up to 3 drawers can be tested at the same time)
8 Column Three sets of upper and lower drive cylinders are built into the column, and the height of the drive cylinder can be adjusted to match the position of the push-pull drawer
9 Manipulator 3 sets, matching suction cups can be adjusted up, down, left, right, front and rear in multiple directions, suitable for refrigerator drawer products of different heights and widths;
10 Suction cup Suction cup, continuous and stable adsorption, 3 sets
11 Open-close times Touch screen setting, adjustable from 0-999999, automatic shutdown after arrival times
12 Drawer extension stroke 0-500mm
13 Drawer extension rate 3-10 times/min, touch screen setting, adjustable
14 Hold time Touch screen setting, adjustable from 0-99999.9S
15 Positioning structure 1 set, fixing the side and back of the refrigerator
16 Frame To match the maximum specimen range, the specimen is mounted on the bottom plate of the rack
17 Power failure memory function The system has the function of power failure and power failure memory, which can continue to accumulate parameter actions and times before the power failure.
18 Protection Emergency stop, leakage, short circuit, overload and other safety protection
19 Dimension Rack: width 1200* depth 1200* height 1400mm, about 150kg

Purpose, principle and structure of apparatus

Equipment principle: Drive the manipulator through the air cylinder, pull the soft rope to drive the drawer closed by the suction cup to the maximum limit, then the air cylinder pushes the pressing wheel to close the drawer, and each pull and push of the drawer is a cycle.

Test machine structure: as shown in the figure below, the overall frame structure is adopted, and the sample is placed on the bottom plate of the equipment, so that the relative motion is internal stress and the shaking of the equipment is reduced. A column-type structure is installed on the bottom plate, and the column contains 3 sets of drawer push-pull mechanisms, as shown in Figure 1 below, which can meet the test up to 3 drawers.

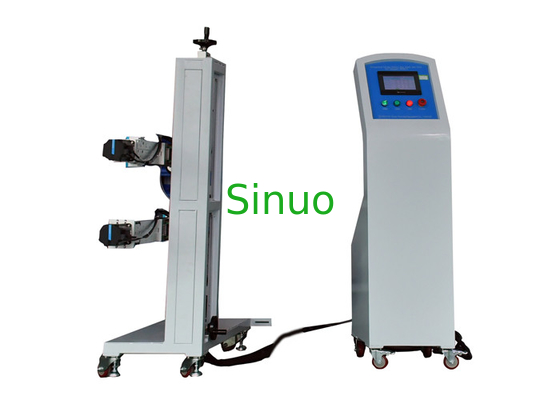

IEC 62552 Customized Stations Automatic Drawer Push And Pull Testing Machine 0



Test Equipment Unit Introduction

The design of the system is based on the principle of modularization, and is designed and manufactured in strict accordance with the requirements of the standard, and at the same time, standardized design and components are used as much as possible. Ensure that the system has optimal performance and technical support.

The use of cylinder drive ensures the high reliability and extremely long service life of the entire system.

The whole system has clear functions, compact structure, beautiful appearance and reasonable layout, which is convenient for maintenance and daily maintenance.

The design and manufacture of the equipment meet the general technical requirements of the customer for the equipment.
