IEC62552 Automatic Refrigerator Door Open And Close Testing Machine

IEC62552 Automatic Refrigerator Door Open And Close Testing Machine

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Standard Exporting Plywood Case
Delivery Period: 30 days
Payment Method: T/T
Supply Capacity: 10 Sets/Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate(cost additional )
Model Number
SN1201B
Standard:
IEC62552:2015
Electrical Control:
Mitsubishi PLC Intelligent Control
Test Project:
Endurance And Swing Test
Operation:
Weinview 7” Touch Screen
Size:
Can Be Customized
Weight Tray:
4 Sets For 50N Door Swing Test
Positioning Structure:
3 Sets
Warranty:
1 Year
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Standard Exporting Plywood Case
Delivery Time:
30 days
Payment Terms:
T/T
Supply Ability:
10 Sets/Month
High Light:

Refrigerator Open And Close Testing Machine

,

PLC Open And Close Testing Machine

Product Description



IEC62552 Automatic Refrigerator Door Open And Close Testing Machine



Standard:

Fully automatic refrigerator door open and close testing machine is designed and manufactured according to IEC62552:2015 and customer-specific requirements. It is used for the vertical door durability test of vertical freezers, and is also used in conjunction with refrigerator energy efficiency performance tests. Door opening and closing action is a dedicated fully automated testing equipment, suitable for testing and certification agencies, factory laboratories and other testing departments.

This equipment adopts mature PLC intelligent control, is equipped with a position-adjustable action actuator, and a suction cup structure to adsorb the surface of the refrigerator. At the same time, it is equipped with a colour LCD touch screen as standard, which can pre-set the test angle, speed, and door opening and closing time, so as to truly simulate manual opening and closing. The refrigerator door has an intelligent control method, and one machine can be used for multiple purposes.



Technical Parameter

No. Project Content
1 Input power source AC220V 50HZ, 5kW
2 Electrical control Mitsubishi PLC intelligent control
3 Operation interface Weinview 7-inch color human-machine interface touch screen operation
4 Drive mode

Door open and open and close test: servo motor + precision reducer

Door Slam Test: Cylinder

5 Sample range The same type of sample as figure 2: WDH=(0.4~1.0m)×(0.4~1.0m) ×(0.6~2.0m)
6 Test project

1. Endurance test of refrigerator door open and close (including left opening, right opening and half opening)

2. 50N door swing test

7 Test station 1 workstation, can test a refrigerator, compatible with left-opening, right-opening and cross-door refrigerators, 4 robotic arms can act independently or simultaneously.
7 Column 2 columns, divided into left open and close door column and right open and close door column, each column has built-in upper and lower two sets of motor-driven swing arms, and the height of the suction cup of the mechanical arm can be adjusted to match the position of the open and close door
8 Manipulator 4 sets of door opening and closing manipulators (upper left, lower left, upper right, lower right), which can adjust the opening and closing positions (that is, the length and height are adjustable), suitable for refrigerator door products of different heights and widths;
9 Suction cup Suction cup, continuous and stable adsorption, 4 sets
10 Weight tray 4 sets for 50N door swing test
11 Open/close door times Touch screen setting, adjustable from 0-999999, automatic shutdown after arrival times
12 Opening angle 0-120° touch screen setting to ±0.1°, adjustable
13 Open/close hold time Touch screen setting, adjustable from 0-99999.9S
14 Open/close frequency 6-30 times/min, touch screen setting, adjustable
15 Positioning structure 3 sets, fixing the side and back of the refrigerator
16 Door tilt angle sensing Configure the angle sensor, communicate with PLC, when the door body exceeds the angle value set by the alarm during the test process, the device automatically prompts the alarm and stops the test
17 Frame To match the maximum specimen range, the specimen is mounted on the bottom plate of the rack
18 Power failure memory function The system has the function of power failure memory, which can continue to accumulate parameter actions and times before the power failure.
19 Data and curve Touch screen with curve display of inclination angle and impact times, data can be queried
20 Protection Emergency stop, leakage, short circuit, overload and other safety protection
21 Dimension Rack: width 1800* depth 1400* height 2400mm, about 350kg

Purpose, principle and structure of apparatus
  1. Door opening action: Drive the mechanical arm through the servo motor, pull the soft rope to drive the door sucked by the suction cup to open in a controlled manner from 0° to 5~15°, and then the free movement process of the door to reach the required angle.
  2. Door closing action: The mechanical arm is driven by the servo motor, so that the pressing wheel pushes the door to close from 45° to 40~35° in a controlled manner, followed by the free movement of the door until it is closed.
  3. Each door opening and closing action is one cycle.
  4. 50N door swing action: First, the refrigerator door is opened to 90° (mechanical limit is set on the inside of the refrigerator door), the suction cup is adsorbed on the outer layer of the refrigerator farthest from the hinge, and one end of the suction cup is connected with the weight by the wire rope, and the weight is lifted through the cylinder. In this way, a force of 50N is applied to the door, so that the door is forced to swing from 90° to the maximum angle. Then use the door swing arm to return the door to the 90° limit, and repeat the impact 10,000 times.

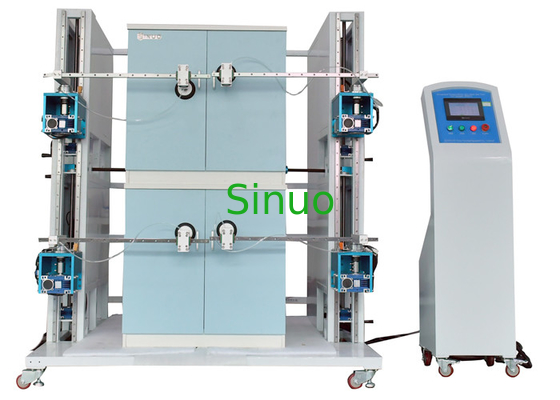

  5. Test machine structure: As shown in the figure below, the overall frame structure is adopted, and the sample is placed on the bottom plate of the equipment, so that the relative movement is internal stress and the equipment shaking is reduced. There are two left and right column structures installed on the bottom plate, each column contains 2 sets of door opening and closing mechanisms as shown in Figure 1, which can meet the test of up to four refrigerators; the sample is as shown in Figure 2.

IEC62552 Automatic Refrigerator Door Open And Close Testing Machine 0

IEC62552 Automatic Refrigerator Door Open And Close Testing Machine 1

Figure 2

IEC62552 Automatic Refrigerator Door Open And Close Testing Machine 2
