IEC60320 Household Couplers General Required Routine Test Gauges
Standards & Clauses:
The measuring gauges are required by IEC60320-1&IEC60320-3.
Technical Parameters:
| No.: | Figure No. | Name | QTY/PC |
| 1 | Figure 4 | 6.5 "GO" -gauge for connectors according to standard sheet C7 | 1 |
| 2 | Figure 5 | 6.6 "GO" -gauge for side-entry connectors according to standard sheet C7 | 1 |
| 3 | Figure 7 | 6.8 "NOT-GO" gauge for connectors according to standard sheets C1, C5 and C7 | 1 |
| 4 | Figure 8 | 6.9 "NOT-GO" gauge for connectors according to standard sheets C1 and C7 | 1 |
| 5 | Figure 9 |
6.10 Blades for checking the resistance against deformation of the front part of the connector to standard sheet C7 |
1 |
| 6 | Figure 10 | 6.11 "NOT-GO" gauge for appliance inlets according to standard sheets C8, C8A and C8B | 1 |
| 7 | Figure 14 | 6.15 "GO" gauge for connectors according to standard sheet C13 | 1 |
| 8 | Figure 15 | 6.16 "NOT-GO" gauge for connectors according to standard sheets C13 and C17 | 1 |
| 9 | Figure 16 | 6.17 "GO" gauge for appliance inlets according to standard sheets C14, C16 and C18 | 1 |
| 10 | Figure 24 | 6.25 "NOT-GO" gauge for connectors according to standard sheets C13, C15 and C17 | 1 |
| 11 | Figure 27 | 6.28 "GO" gauge for appliance outlets according to standard sheet F | 1 |
| 12 | Figure 31 |
6.32 Gauges for checking the distance from the engagement face of connectors and appliance outlets to the point of first contact |
1 SET |
| 13 | Withdrawal force gauge | Test appliance inlet in standard sheet: C8 | 1 |
| 14 | Withdrawal force gauge | Test appliance inlet in standard sheet: C8A | 1 |
| 15 | Withdrawal force gauge | Test appliance inlet in standard sheet: C8B | 1 |
| 16 | Withdrawal force gauge | Test appliance inlet in standard sheet: C8C | 1 |
| 17 | Withdrawal force gauge | Test appliance inlet in standard sheet: C14 | 1 |
| 18 | Withdrawal force gauge | C8: diameter 2.32mm, 1.5N | 1 |
| 19 | Withdrawal force gauge | C14: 3.9mm x 1.95mm, 1.5N | 1 |
| 20 | Withdrawal force gauge | C14: 3.9mm x 1.95mm, 1.5N(earthing pin) | 1 |
| 21 | Withdrawal force gauge | Plug connetor in standard sheet C with maximum dimemsions | 1 |
| 22 | Withdrawal force gauge | Plug connetor in standard sheet E with maximum dimemsions | 1 |
| 23 | Withdrawal force gauge | Plug connetor in standard sheet C with minimum dimemsions | 1 |
| 24 | Withdrawal force gauge | Plug connetor in standard sheet E with minimum dimemsions | 1 |
1. Please do not damage the appliance shape (such as scratching, bending, etc.).
2. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.
3. Add anti-rust oil regularly.

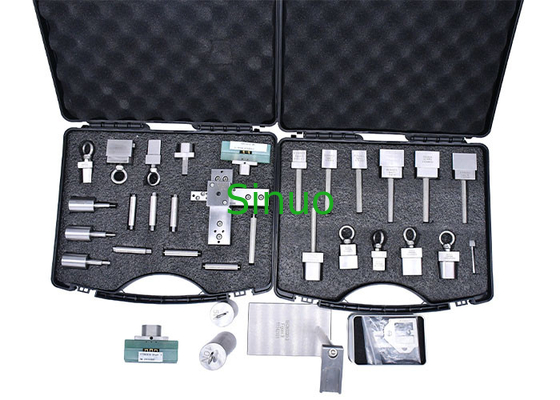

Gauges example
Video
Video
|
|
