| Applied Standard: | IEC 61009, IEC 60898 And Etc. | Drive: | Servo Motor And Cam Drive |
|---|---|---|---|
| Helical Spring: | Elastic Coefficient 25N/mm | Drop Height: | 40mm |
| Turntable: | It Can Be Rotated And Fixed At 12-30° | Counterweight: | 100g*10, 150g*5, 200g*5 |
| Test Count: | 0-999999 Times, Touch Screen Preset | Interval Time: | 0-999999 Seconds, Touch Screen Preset |
| Control Mode: | PLC, 7" Touch Screen Control | Warranty: | One Year |
| High Light: | Mechanical Shock Multiple Angle Tester,IEC60898-1 Multiple Angle Tester,AC Circuit Breaker Multiple Angle Tester |
||

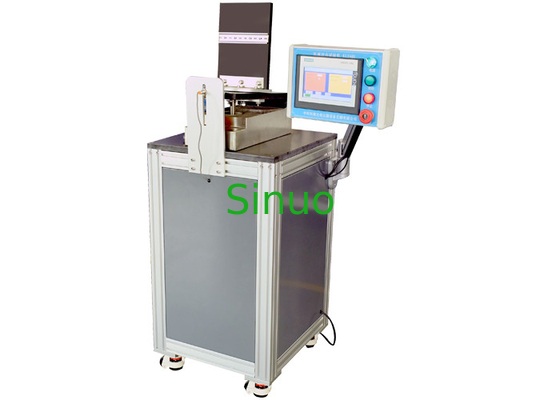

IEC60898-1 AC Circuit Breaker Mechanical Shock Multiple Perspectives Tester
Product overview
The mechanical shock test equipment is based on the relevant requirements of IEC60898-1, IEC61009-1, IEC60934:2007.
Design and manufacture, suitable for circuit breaker products, to verify the impact resistance of exposed parts that may be subjected to mechanical shock during normal use of the circuit breaker.
The equipment adopts PLC control, touch screen operation, motor-driven cam mechanism to control the lifting action, the interval time can be preset, the whole machine adopts a floor-standing structure, easy to operate, practical and beautiful.
Main parameters
| The parameter name | Parameter data |
| The power supply voltage | 220V (AC) 50Hz |
| control | PLC control, 7 inch color touch screen operation |
| drive | Motor drive mechanism CAM |
| Test station | Simplex bit |
| Spiral spring | Elastic coefficient 25N/mm |
| Base A, platform B, plank C | Hardwood, painted black |
| Drop height | 40mm |
| turntable | Can be fixed by rotation of 12-30° |
| Weight weight | 100g*10 PCS, 150g*5 PCS, 200g*5 PCS, |
| Number of test | 0-999999 times, touch screen preset |
| Drop interval time | 0-999999s, touch screen preset |
| Equipment dimensions and weight | WDH = 900 * 600 * 1350, about 110 kg |
Equipment principle
Designed in accordance with IEC60898-1, the mounting plate equipped with the circuit breaker is lifted by the motor control cam, and instantly falls freely to the metal stop plate equipped with a spiral spring with an elastic coefficient of 25N/mm. This reciprocating 50 times, the sample is switched to another 3 90-degree directions through the turntable to repeat the test 50 times.
