IEC 60335 Electrical Insulation Performance Overflow Test Apparatus PLC Control
| Applied Standard: | IEC 60335-2-15 And Etc. | Control Mode: | PLC Controller Control |
| Tilt angle: | 0~20 Degrees Adjustable | Flow control range: | 250ml-900ml |
| Water injection speed: | 250ml-900ml Per Minute Can Be Set | Funnel specifications: | Pipe Diameter 8mm, Length 30mm Funnel |
| Test point alignment: | Laser Alignment | Adjustable height: | Maximum 400 Mm |
| High Light: | IEC 60335 Overflow Test Apparatus,PLC Overflow Test Apparatus,400mm Adjustable Overflow Test Apparatus |
||

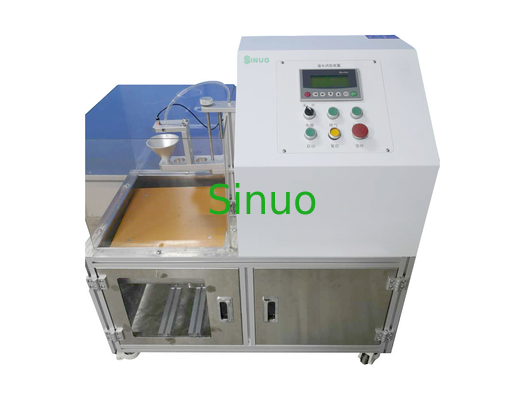

IEC 60335 Electrical Insulation Performance Overflow Test Apparatus PLC Control
Product overview:
The equipment conforms to IEC 60335-1:2004(Ed 4.1) requirements and IEC60335-2-15:2005, IEC 60335-2-14:2006 test requirements.
Technical parameters:
| Control Mode | PLC controller control, man-machine interface for operation |
| Driven Mode | Stepper motor driven, stainless steel piston water injection cylinder |
| Tilt angle | 0~20 degrees adjustable |
| Flow control range | 250ml-900ml |
| Water injection speed | 250ml-900ml per minute can be set |
| Funnel specifications | Pipe diameter 8mm, length 30mm funnel |
| Test point alignment | Laser alignment |
| Adjustable height | Maximum 400 mm |
| Sample table placement size | 350x350mm |
It can be in 1min with 1% sodium chloride solution (container capacity of 15%, or 0.25L solution with the same concentration, the two take more) evenly into the container of the test appliance.
Use: The structure of the product in normal operation will accidentally splash water outside the container, or the water in the container is too full, when energized, the water will boil over and so on. This equipment is used to test the liquid heater for moisture resistance test, the sample can ensure that the overflow of water does not affect their electrical insulation performance.
