BS EN 12983 2Lb Non Stick Cookware Coating Abrasion Resistance Testing Equipment

BS EN 12983 2Lb Non Stick Cookware Coating Abrasion Resistance Testing Equipment
BS EN 12983 2Lb Non Stick Cookware Coating Abrasion Resistance Testing Equipment

Large Image :  BS EN 12983 2Lb Non Stick Cookware Coating Abrasion Resistance Testing Equipment

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN1601
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood
Delivery Time: 30 Days
Payment Terms: L/C, , T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Applied Standard: BS EN 12983-1 Drive Mode: Motor Drive
Test Speed: 30 Times /min, Adjustable Abrasion Stroke: 2.45-10cm, Adjustable
Abrasion Angle: 45° With Horizontal Plane Load Weight: 2Lb(907.2g)
Test Times: 0-999999 Times, Can Be Preset Product Name: Nonstick Pan Coating Abrasion Resistance Tester
Control Method: Control Method Station: Single Station (Can Be Customized)
High Light:

Cookware Coating Abrasion Resistance Testing Equipment

,

Single Station Abrasion Resistance Testing Equipment

,

10cm Abrasion Resistance Testing Equipment



BS EN 12983 2Lb Non Stick Cookware Coating Abrasion Resistance Testing Equipment



Product Overview:



This product is conforms to BS EN 12983-1, and is customized according to customer requirements and is a professional equipment dedicated to wear resistance testing of non-stick pan coatings. It can test the round or square non-stick pans, which size is less than 400*400mm.The station can be customized.



Technical Parameters:



Input Power Match client's local power supply requirements
Control Method PLC control, touch screen operation
Station One (can be customized)
Drive Mode Motor
Test Speed 30 times /min, adjustable
Abrasion Stroke 2.45-10cm, adjustable
Test Times 0-999999, can be preset
Loading Weight 2Lb(907.2g)


Working Principle:

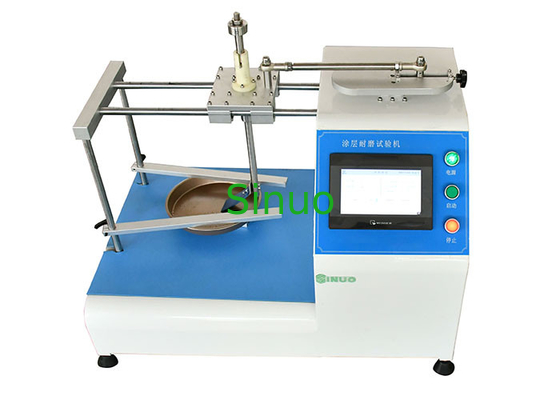

The working component with the scouring pad is parallel to the inner coating surface of the non-stick pan. Use a weight to apply 2Lb of gravity to the working component to make it fully contact the coating surface, and put a certain amount of test liquid in the pan ( According to the standards), the friction head is driven by the motor to do reciprocating motion to achieve the purpose of testing the wear resistance of the non-stick pan coating.



BS EN 12983 2Lb Non Stick Cookware Coating Abrasion Resistance Testing Equipment 0

BS EN 12983 2Lb Non Stick Cookware Coating Abrasion Resistance Testing Equipment 1
