PLC Two Stations Circular Saw Switch And Lower Guard Endurance Test Equipment

PLC Two Stations Circular Saw Switch And Lower Guard Endurance Test Equipment

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Exporting Boxed
Delivery Period: 20 Days
Payment Method: L/C, T/T
Supply Capacity: 30 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2803
Applied Standard:
EN 60745, Annex M21.18 And Etc.
Applied Clause:
Annex M21.203, Annex M21.301 And Etc.
Control System:
PLC, 7-inch Touch Screen
Built-in Load:
0~250V/5KW
Test Cycles:
0-999999, Can Be Preset
Test Speed:
≥10 Freq/min
Guard Recovery Detection Time:
0.01-9.99s, Can Be Displayed
Station:
Two Stations
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Exporting Boxed
Delivery Time:
20 Days
Payment Terms:
L/C, T/T
Supply Ability:
30 Sets Per Month
High Light:

EN 60745 Endurance Test Equipment

,

Circular Saw Switch Endurance Test Equipment

,

Two Stations Endurance Test Equipment

Product Description



EN 60745 Two Stations Circular Saw Switch And Lower Guard Endurance Test Equipment



Product Information:

This test device for circular saw switch and lower guard conforms to EN 60745-2-5: 2010 Annex M21.18, Annex M21.18.301, Annex M21.203, Annex M21.301, figure M.301, IEC60745-2-5:2003 Annex BB.20.102, EN 60745-2-5:2010 clause 17.101 and clause 19.102.3.

It is used to test the circular saw switch performance and circular saw lower guard’s durability and recovery time.



Technical Parameters:

No.: Serial No.: Parameter Remark
1 Input Power 220V/50Hz
2 Control System PLC, 7-inch touch screen
3 Station

One (model: SN2802)

or

two (model: SN2803)

optional


4 Built-in Load 0~250V/5KW voltage regulator, equipped with B socket
5 Test Cycles 0-999999, can be preset
6 Test Speed ≥10 freq/min
7 Guard Recovery Detection Time 0.01-9.99s, can be displayed Recovery time
8 Circular Saw Switch Locking Device Lock or release the switch by motor driving
9 Operation Buttons Stop and Start buttons on the panel for operator easily cut off or turn on the power

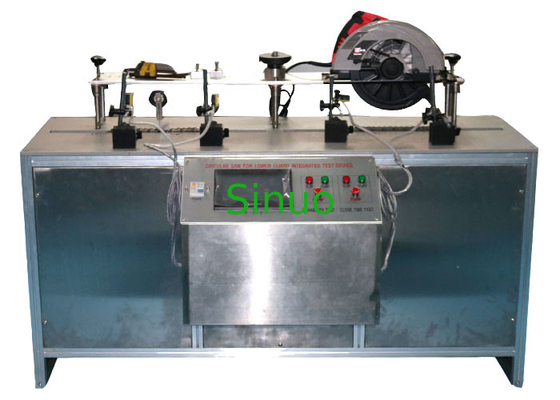

Equipment Structure

This equipment is composed of two parts, the mechanical system and electrical control system.



Mechanical system is the table for circular saw. There are a switch and sample socket on the table, operator can push the switch to turn on or off the load power supply to the test sample; different sizes of circular saws can be placed and fixed on the table; on the table, device for locking the switch of the hand-held circular saw in the “on” position; the blade can extend to the bottom of the table through the middle groove; on the table where under the blade, there are a the lower guard putter and two position sensors , which can be drive the lower guard of the circular saw to be opened or closed.



The electrical control system consists of the load power supply, PLC, 7 Inch Touch screen and etc. Can achieve manual operation and automatic operation.

PLC Two Stations Circular Saw Switch And Lower Guard Endurance Test Equipment 0PLC Two Stations Circular Saw Switch And Lower Guard Endurance Test Equipment 1
