IEC 61180-1 Clause 7 Impulse Voltage Generator Test Equipment
| Applied standard: | IEC 61180-1 | Applied clause: | 7 |
| Output polarity: | Positive And Negative | Voltage integrated wave: | 1.2/50ms |
| Integrated wave output voltage: | 0.1~15kV | Impulse times: | 1~9999 Times |
| High Light: | Impulse Voltage Generator Test Equipment,Clause 7 Generator Test Equipment,IEC 61180-1 Generator Test Equipment |
||

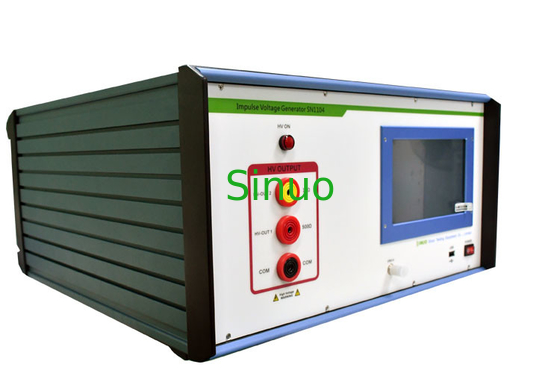

IEC 61180-1 Clause 7 Impulse Voltage Generator Test Equipment
Product Information:
The impulse voltage generator conforms to the standards as follow.
IEC 61180-1:2016 < High-voltage test techniques for low voltage equipment - Part 1: Definitions, test and procedure requirements, test equipment> clause 7.
IEC60335-1:2016 clause 14.
IEC60950-1:2013 clause1.5.7.2, 1.5.7.3,2.10.3.9,6.2.2.1,7.4.2,7.4.3, G5, Annex N.
IEC60065:2014 clause13.3.4, Annex J.5, Annex K.
It is used to verify that appliances shall withstand the transient over-voltages to which may be subjected. The impulse voltage generator with a wave of 1.2/50ms(10/700ms) is a standard lightning wave test device. The front time of the impulse voltage is 1.2ms(10ms), the time to half-value is 50ms(700ms).
Technical Parameters:
| Applied standard | IEC 61180-1 |
| Applied clause | 9 |
| Voltage integrated wave | 1.2/50ms (when the output of the waveform generator is open) |
| Integrated wave output impedance | 12W±10%, 500W±10% |
| Integrated wave output voltage waveform peak value | 0.1~15kV |
| Output polarity | Positive and negative |
| Impulse output mode | Automatic mode |
| Impulse times | 1~9999 times |
| Impulse interval time | 3~99 s |
| Dimensions | 500×470×260 mm (L*W*H) |
| Weight | About 30kg |
| Front time | T1=1.67T=1.2ms±30% |
| Half-peak time | T2=50ms±20% |
| Environment temperature | 10~35℃ |
| Relative temperature | 10%~65% |
| Atmospheric pressure | 86~106 KPa |
| Rated working voltage | 220V±10%,50/60Hz |
IEC 60335-1 Clause 22.5 Residual Voltage Tester Testing Range 5~150V Test Impedance ≥1000 MΩ
IEC 60335-1 Clause 22.5 Residual Voltage Tester Testing Range 5~150V Test impedance ≥1000 MΩ Product information: The Residual Voltage Tester is in accordance with the requirements of IEC 60335-1 Clause 22.5 (GB4706.1 Clause 22.5),IEC 60065 Clause 9.1.6 (GB8898 Clause 9.1.6), IEC 60601-1 (GB9706.1 ...
