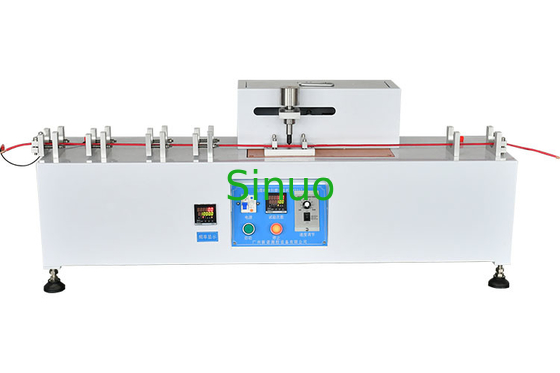

ISO 6722 Clause 9.3 Cable Insulation Scratch Test Equipment

ISO 6722 Clause 9.3 Cable Insulation Scratch Test Equipment
ISO 6722 Clause 9.3 Cable Insulation Scratch Test Equipment ISO 6722 Clause 9.3 Cable Insulation Scratch Test Equipment ISO 6722 Clause 9.3 Cable Insulation Scratch Test Equipment ISO 6722 Clause 9.3 Cable Insulation Scratch Test Equipment

Large Image :  ISO 6722 Clause 9.3 Cable Insulation Scratch Test Equipment

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN2137
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Exporting Plywood Case
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets Per Month
Detailed Product Description
Applied Standard: ISO 6722 Applied Clause: 9.3
Drive Mode: Motor Driven Voltage: 320V(AC)50Hz
Test Speed: 0-60 Times/min, Adjustable Scraping Length: 10-20mm
High Light:

Cable Insulation Scratch Test Equipment

,

Clause 9.3 Scratch Test Equipment

,

ISO 6722 Scratch Test Equipment



ISO 6722 Clause 9.3 The Cable Insulation Scratch Test Equipment



Product Information

The Cable Insulation Scratch Test Equipment is designed and manufactured according to the standard requirements of ISO 6722 clause 9.3, and etc.It is used to test cable insulation scratch resistance.

Use the motor to drive the eccentric wheel to rotate to control the length of scraping. The scraping frequency is 50-60 times per minute to scrape the insulating surface of the sample. The length of scraping can be adjusted (10-20mm). The equipment has the function of scraping times. The grinding times can be set. When the scraper scrapes the insulating layer and contacts the conductor, the equipment will stop running and give an alarm, and record the current scraping and grinding times.



Technical Parameters

Applied standard ISO 6722
Applied clause 9.3
Voltage 320V(AC)50Hz
Drive mode Motor driven
Test speed 0-60 times/min, adjustable
Scraping length 10-20mm, adjustable, eccentric wheel adjustment
Test times 0-999999 times, adjustable
Scraper tip diameter 0.25mm



ISO 6722 Clause 9.3 Cable Insulation Scratch Test Equipment 0ISO 6722 Clause 9.3 Cable Insulation Scratch Test Equipment 1
