Product Details:
Payment & Shipping Terms:
|
| Applied Test Standard: | IEC60335-1 | Voltage Integrated Wave: | 1.2/50µs |
|---|---|---|---|
| Output Polarity: | Positive, Negative | Impulse Cycles: | 1~9999 Cycles |
| Impulse Output Mode: | Automatic | Impulse Interval Time: | 3~99 Seconds |
| Max. Voltage: | 12.5kV | Output Impedance: | Can Be Customized |
| High Light: | IEC 60335-1 Impulse Voltages Generator,1.2/50ms Impulse Voltages Generator,Automatic Impulse Voltages Generator |
||

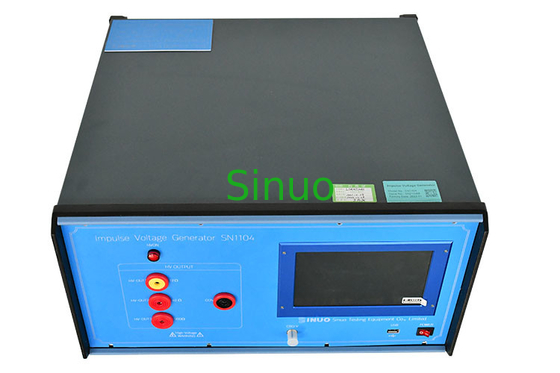

IEC 60335-1 1.2/50µs High Voltage Pulses Impulse Voltages Generator
Product Information:
This impulse voltage test generator is required by IEC60335-1:2004, IEC60950-1:2005, IEC60065:2005, and etc.
The equipment is used to verify transient overvoltage to which household and similar appliances, information technology equipment, and audio and video electronic equipment may be subjected.
Technical Parameters:
| Applied standard | IEC 60335-1 |
| Voltage integrated wave | 1.2/50µs (when the output of the waveform generator is open) |
| Integrated wave output impedance | 12Ω±10%,42Ω±10%, 500Ω±10% |
| Integrated wave output voltage waveform peak value | 0.1~12.5kV |
| Output polarity | Positive, negative |
| Impulse output mode | Automatic |
| Impulse times | 1~9999 times |
| Impulse interval time | 3~99 seconds |
| Dimensions | 500*470*260mm (L*W*H) |
| Weight | About 30kg |
| Front time | T1=1.67T=1.2ms±30% |
| Half-peak time | T2=50ms±20% |
| Environment temperature | 10~35℃ |
| Atmospheric pressure | 86~106 KPa |
| Rated working voltage | ~220V±10%,50/60Hz |
