Applied Standard: | IEC 60335-1 | Applied Clause: | Clause 30 |
---|---|---|---|
Gas Pressure: | 0.1MPa | Flame Height: | 38±2mm,blue Flame |
Test Distance: | 13±1mm | Combustion Time: | 0-9999X0.1S |
High Light: | Horizontal Burning Test Chamber,IEC 60335-1 Burning Test Chamber,Clause 30 Burning Test Chamber |

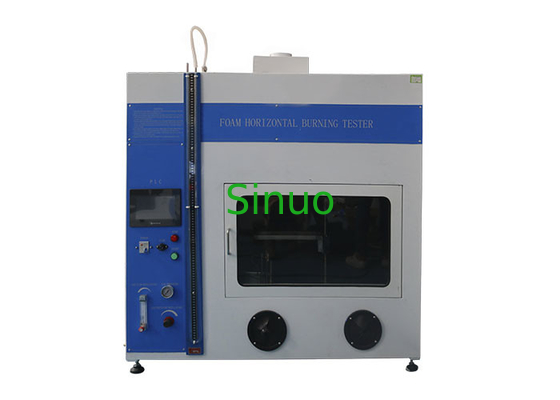

IEC 60335-1 Clause 30 Cellular Plastic Materials Horizontal Burning Test Chamber
Product information:
This test chamber is designed and manufactured according to the standard and related requirement of ISO9772-2001, UL94, it is required by IEC 60335-1 clause 30. This international standard specifies a small-scale laboratory screening procedure for comparing the relative burning characteristics of horizontally oriented, small cellular plastic specimens having a density less than 250kg/m' determined in accordance with ISO 845, when exposed to an ignition source.
This equipment adopts the integral intake ignition system. The combustion time delays 0.1S thus to make sure the sufficient time of gas burning.
Technical parameters:
Applied standard | IEC 60335-1 |
Applied clause | Clause 30 |
Working voltage | 220V/50Hz |
Blast burner standard | ISO10093: 1998, inner diameter Φ9.5±0.3mm, effective length:100±10mm, with wing section lamp top:48±1×1.3 ±0.05mm |
Gas pressure | 0.1MPa |
Gas flow and gas category | 965±30ml/min, for the methane gas purity of 98%, it can also use the mixed gas or propane gas, flow meter adjustment |
Combustion / self-extinguishing time | 0-9999X0.1S |
Distance between the wing top of the blast burner to the test sample | 13±1mm |
Flame height | 38±2mm,blue flame |
Support net | 215×75×13mm, grid: Φ0.8 made of stainless-steel wire with length of the side of 6.4mm |
Lighting | Equip with lighting in the test chamber, with control |
Test chamber and dimension | >0.5 cube,black matte background,with exhaust fan,,dimension:1100*550*1200mm,130kg |
Testing environment |
Temperature: 15°C~35°C Humidity: 45%~75% |
