IEC60695-11-5 Ф0.9mm Needle-shaped Fire Hazard Tester For Electrical Appliance

MOQ: 1
Price: Negotiable
Standard Packaging: Plywood Case
Delivery Period: 30 Days
Payment Method: T/T
Supply Capacity: 20 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN773
Test Chamber Volume:
≥ 0.5 Cube
Temperature Range:
0~1000℃
Timing Device:
9999X0.1S
Flame Height:
12±1mm Adjustable
Thermocouple Type:
φ0.5mm Type K
Inner Bore:
φ0.5mm ± 0.1mm
Volume Size Adjustment:
Flowmeter Adjustment
Combustion Angle:
Tilt 45° Or Vertical
Needle Burner:
Ф0.9mm Needle-shaped
Control Method:
PLC Control
Highlight:

IEC60695-11-5 needle fire tester

,

Ф0.9mm needle flame test chamber

,

electrical appliance flammability tester

Product Description
Product Overview

The Needle Flame Test Apparatus (SN773) is engineered to IEC60695-11-5 and meets the requirements of IEC60335-1 clause 30.2.3.2, Annex E. It evaluates the fire hazard caused by fault conditions inside electrical equipment by measuring specimen ignition, combustion time, and burning length.

This needle flame tester features a Φ0.9mm needle-shaped stainless steel burner that tilts at 45° for standard testing, powered by butane gas. Adopting PLC control and a 7-inch color touch screen, the entire testing process runs automatically with an independent air draft.

Designed for laboratories, manufacturers, and quality inspection departments, it performs flame ignition tests on low-voltage apparatus, household appliances, electrical connectors, engineering plastics, insulating materials, and other solid combustible materials.

Core Features
  • ✓ Complies with IEC60695-11-5 and IEC60335-1 clause 30.2.3.2 Annex E
  • ✓ Φ0.9mm stainless steel needle burner with adjustable 45° test angle
  • ✓ PLC + 7-inch color touch screen for fully automatic test procedure
  • ✓ Adjustable flame height of 12±1mm, with flame height gauge
  • ✓ K-type thermocouple with test temperature range up to 1000℃
  • ✓ Independent air draft and flowmeter adjustment for stable flame
  • ✓ Stainless steel test chamber with black background for observation
Application

Assess fire hazard under electrical fault conditions for lighting equipment, low-voltage apparatus, household appliances, electrical connectors, electronic instruments, insulating materials, and engineering plastics. Verify ignition risk and burning characteristics for safety certification.

Technical Parameters
Parameter / Model SN773
Working voltage AC 220V / 50Hz
Control PLC
Display 7-inch color touch screen
Timing device 9999 × 0.1S
Combustor Inner bore φ0.5mm ± 0.1mm, OD ≤ φ0.9mm, L ≥ 35mm, stainless steel
Combustion angle Tilt 45° (testing) or vertical (when adjusting the height of the flame)
Height of the flame 12 ± 1mm adjustable (with flame height gauge)
Gas category 95% butagas (can use bottled lighter gas)
Range of temperature test 0 ~ 1000℃
Flame warming requirement From 100° to 700°, time for standard values within 23.5S ± 1S
Temperature thermocouple φ0.5 armour nickel-chromium / nickel aluminum wire K-Thermocouple
Work shop 0.5 cube, stainless steel case, black yogon background
Testing process Test procedure automatic control, independent air draft
Volume size adjustment Flowmeter adjustment
Needle Flame

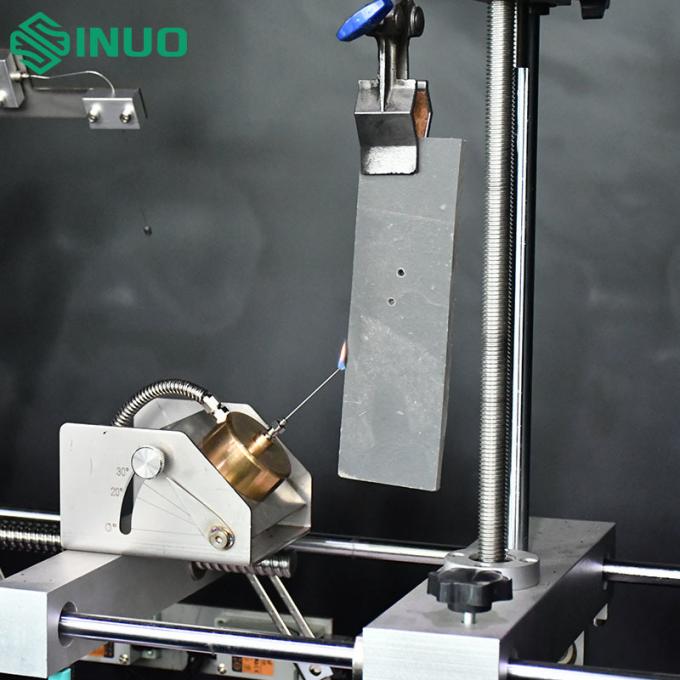

Needle flame test apparatus SN773 showing the Φ0.9mm stainless steel needle burner tilted at 45 degrees inside the stainless steel test chamber with black background

Needle flame test in progress — Φ0.9mm stainless steel burner at 45° tilt
