IEC 60884-1 Clause 16.1 Natural Convection Oven Circulation Heating Cabinet
| Applied standard: | IEC 60884-1 | Applied clause: | 16.1 |
| Temperature range: | Room Temperature RT ~ 300 ° C | Temperature control: | PID Digital Setting |
| Test shelves: | Two Trays | Air circulation: | Natural Convection |
| High Light: | IEC 60884-1 Natural Convection Oven,Clause 16.1 Natural Convection Oven,Natural Circulation Heating Cabinet |
||

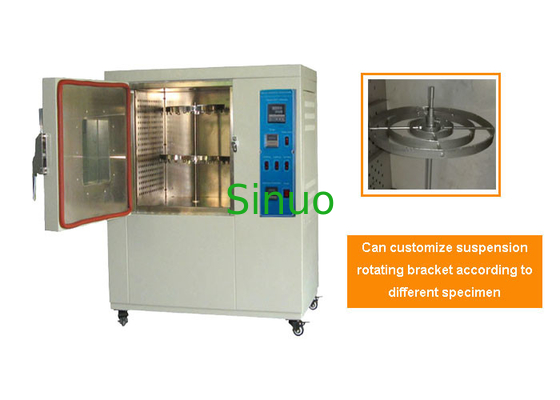

Natural Convection Oven Natural Circulation Air Ageing Heating Cabinet
Product Information:
This device is required by IEC 60884-1:2013 clause 16.1, IEC 60669-1 clause 15.1, IEC 60065:2014 clause 12.1.6, etc. It is used to perform thermal aging test to polymer materials (plastics, plastics and electrical insulating materials such as: wire and cable sheathing, heat shrinkable tube, rubber test or PVC materials, and the insulating components, or use for drying, baking, heat treatment and so on
Features:
1. Adopts to microcomputer electronic digital control method, precise, accurate, stable and reliable.
2. The chamber insulation package is made of silicon, high temperature resistant, never aging; and an observation window is attached to facilitate the observation of the sample during the experiment.
3. P.I.D. control system, double over-temperature protection, safe and reliable.
4. The temperature setting is simple, and the operation is more convenient.
Attachment tray, can be adjusted freely.
Technical Parameters:
|
Applied standard |
IEC 60884-1 |
|
Applied clause |
16.1 |
|
Temperature range |
Room temperature RT ~ 300 ° C |
|
Inner chamber size |
L 50cm * W 60cm* H 80cm |
|
Temperature control |
PID digital setting |
|
Test shelves |
Two trays |
|
Timer |
0~9999H/ M / S |
| Temperature resolution | 0.1 ° C |
|
Temperature fluctuation |
±1 °C |
|
Distribution error |
±2.5 °C |
|
Air circulation |
Natural convection |
|
Natural ventilation |
8~20 times/hour |
|
Test piece rotation speed |
5~10r.p.m |
|
Observation window |
Square window |
|
Material |
Inner chamber SUS#304 stainless steel, outer chamber electrostatic spray paint |
|
Machine weight |
About 120 kg |
|
Power supply |
AC 220V±10%, 50hz |
| Equipment dimensions | 1060mm×700mm×1445mm |
