IEC 60335-2-24 Clause Annex BB Figure BB.1 Water Evaporation For Accumulation Of Frost Test Apparatus
| Applied standard: | IEC 60335-2-24 | Applied clause: | Annex BB (figure BB.1) |
| Water Interjection method: | Manually | Heating source: | 5W Incandescent Lamp |
| Power consumption: | Digital Display | Frame material: | PVC Or Bakelite |
| High Light: | Annex BB Figure BB.1 Apparatus,IEC 60335-2-24 Figure BB.1 Apparatus |
||

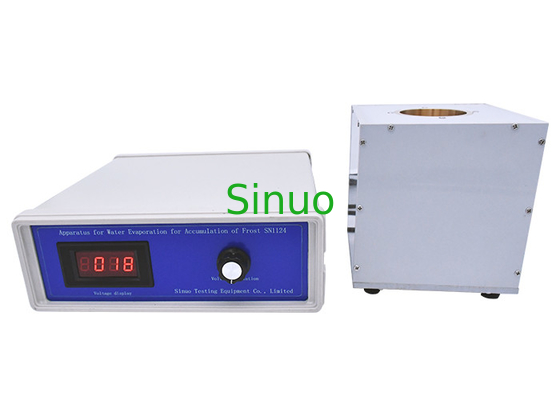

IEC 60335-2-24 Clause Annex BB Figure BB.1 Water Evaporation For Accumulation Of Frost Test Apparatus
Product Information:
This test apparatus is designed and manufactured according to the standard requirement of IEC 60335-2-24 clause 11.102 and Annex BB (figure BB.1). It is used for water evaporation for accumulation of frost on these samples, such as refrigerators, ice-cream appliances and ice-makers. This container shell is made from PVC material, and the heat conduction part is made of cooper. It has the beautiful appearance and easy to operate.
Technical Parameters:
| Applied standard | IEC 60335-2-24 |
| Applied clause | 11.102 and Annex BB (figure BB.1) |
| Input power supply | AC220V, 50HZ |
| Frame material | PVC or Bakelite |
| The material of heat conduction board | Copper plate |
| Heating source | 5W incandescent lamp |
| Output voltage of voltage supply device | 20~220V, adjustable |
| Power consumption | Digital display |
| Container external size | 145*145*145mm |
| Consumption water weighing method | Digital display electronic balance (provided by the user) |
| Water Interjection method | Manually |
