MOQ: | 1 |
Price: | Negotiable |
Standard Packaging: | Standard Exporting Boxed |
Delivery Period: | 30 Days |
Payment Method: | L/C, T/T |
Supply Capacity: | 30 Sets Per Month |

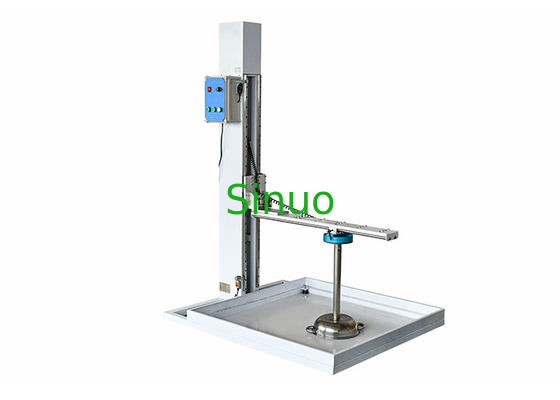

IEC62262 IK07-IK10 Mechanical Vertical Impact Test Apparatus
Product Introduction:
The IK07-IK10 Mechanical Vertical Impact Test Apparatus is designed and manufactured according to the standard requirements of IEC60068-2-75, IEC60598-1, IEC62262 and etc.
It is used for the impact resistance test of the enclosures of household and similar electronic and electrical products and their accessories, luminaires, etc., to assess the safety performance and strength level of the products.
The principle is that the striking element is free released at a certain height through a 1 m pendulum tube, impact the specimen at the lowest point in the vertical direction, after the conversion of gravitational potential energy to kinetic energy, to achieve the purpose of impact test on the sample.
Technical Parameters:
Standard | IEC62262 |
Energy / J | 2, 5, 10, 20 and 50J are optional |
Striking Elements (Equivalent Mass) |
500g,1.7kg,5 kg,5 kg,10 kg, please refer to the following table 1 |
Conduit | Each striking element is equipped with a dedicated conduit |
Impact Point | The device has X and Y axis guides to move the release device over the entire bottom area |
Height of Impact Point | 0-1000mm, electric adjustable |
Height of Fall | Please refer to table 2, fixed by the conduit |
Release Method | Electromagnet release |
Bottom Plate | Nylon base plate thickness 8mm, hardness HRR85-100,1000m×1000m |
Relationship of IK code and corresponding energy :
IK Code |
IK07 | IK08 | IK09 | IK10 | ||||
Energy / J | 2 | 5 | 10 | 20 | ||||
Note 1. If higher impact energy is required, the recommended value is 50J. Note 2: Some other standards use a single digit to indicate the specified impact energy. To avoid mixing with it, the feature number is represented by two digits. |
||||||||
an unprotected according to this standard |
