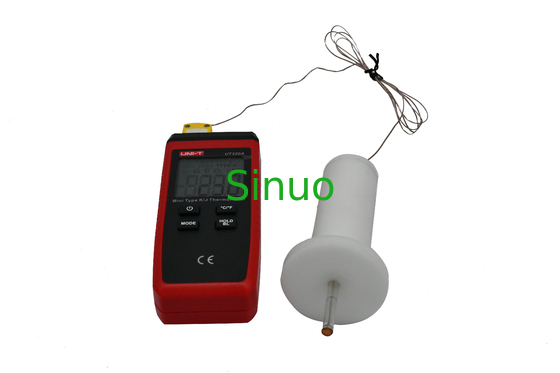

IEC60335-2-6 Clause 11.101 Surface Temperature Probe With Thermometer
| Standard: | IEC60335-2-6 Clause 11.101 | Copper: | Φ5*0.5mm |
| Thermocouple: | K Type, Φ0.3mm | Pull force: | 4±1N, Scale Display |
| Handle: | Nylon | Configuration: | Thermometer |
| High Light: | Clause 11.101 Surface Temperature Probe,IEC 60335-2-6 Surface Temperature Probe,Scale Display Surface Temperature Probe |
||
IEC60335-2-6 Clause 11.101 Surface Temperature Probe (With Thermometer)
Product Overview:
The surface temperature probe conforms to the standard requirements of IEC60335-2-6:2018 Clause 11.101figure 104, EN 60335-2-9/A12 Clause 11.3 Figure Z101, IEC 60335-2-11 Clause 11.3figure 101, and etc.
It is mainly used to measure the temperature rise on the front surface of the easily accessible parts of electrical appliances such as drum-type dryer, upright electric cooker, cooking bench and oven.
Technical Parameters:
| Standard | IEC60335-2-6:2018 Clause 11.101figure 104 |
| Scope of application | It used to measure the temperature rise of the accessible parts of household tumble dryers, electric stoves and ovens |
| Copper | Φ5*0.5mm |
| Polycarbonate tube | The internal diameter Φ3 mm, the external diameter Φ5mm |
| Thermocouple | K type, Φ0.3mm |
| Pull force | 4±1N, Scale display |
| Handle | Nylon |
| Configuration | Thermometer |
What is a surface temperature probe?
Surface temperature probes to measure almost any surface. From the handle roller styles to the high-temp foundry style probe, surface thermocouples to meet the most challenging measurement requirements.
