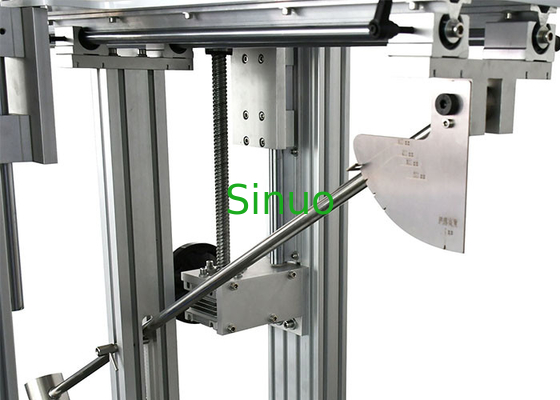

IEC 62262 IK Code High Energy Pendulum Hammer Impact Test Apparatus
| Applied Standards: | IEC 62262 | Applied Specimen: | Electrical Products Enclosure |
| Striking Element: | 2J, 5J, 10J, 20J, 50J Optional | Equivalent Mass kg: | 500g, 1.7kg, 5 Kg,5 Kg, 10kg Are Optional |
| Striking Element Material: | Steel | Pendulum Rod Length: | 1000 Mm |
| High Light: | Pendulum Hammer Impact Test Apparatus,IEC 60884-1 Impact Test Apparatus,10J Impact Test Apparatus |
||
IEC 62262 IK Code High Energy Pendulum Hammer Impact Test Apparatus
Product overview:
This High Energy Pendulum Hammer Impact Test Apparatus is a high-energy pendulum impact tester used for mechanical strength testing of household and similar electrical and electronic products and their accessories.
Including but not limited to plug connection wall, hanging installation box, crimping cover, cover, lamp, etc.
It is mainly used for product impact test on the safety performance and performance of these products.
It conforms to standards:
IEC62262:2002 “Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code)”
IEC60068-2-75:2014 “Environment testing for electric and electronic products Part2: Test methods -Test Eh: Hammer tests IDT”
IEC60598-1:2017 “Luminaries-Part1: General requirements and tests”
Design:
The high pendulum impact testing machine adopts a small structure and can move left and right. The impact height is heated by the lead screw, and the impact angle is 0-90° dangerous. In the point impact test, the potential energy of gravity is converted into kinetic energy to achieve the purpose of impact test on the sample.
| Technical Parameters | |
| Striking Elements (Energy/J) | 10J (2J, 5J,20J, 50J are optional) |
|
Equivalent Mass kg |
1.7kg (500g, 5 kg,5 kg, 10kg are optional), please refer to following table 1 |
| Striking Elements Material | Steel |
| Pendulum Tube | Length 1000㎜,outer diameter 15.9 mm, wall thickness 1.5 mm steel pipe |
| Impact Point | Up and down adjustable, stroke: 200-1200mm, the height is customizable |
| Height of Fall | 0-500mm, scale display |
| Striking Element Fix and Release | Fixed by mechanical latch, released by spring device |
