| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, , T/T, Western Union, MoneyGram |
| Supply Capacity: | 20 sets per month |

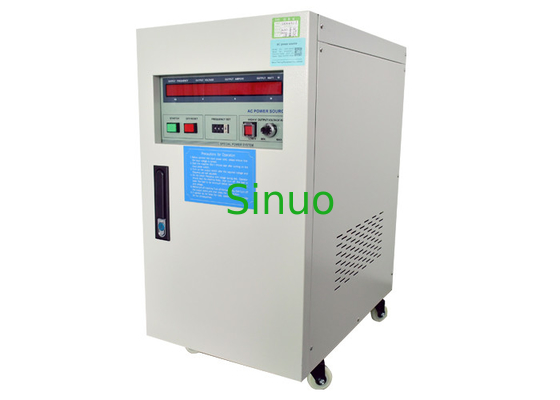

IEC61800-2 Single Phase Variable Frequency Power Supply 5KVA
Product introduction:
This product is widely used in various fields, and provide the power supply system of the customer solutions from power environmental considerations, optimization of load collocation, power matching selection, designed to fit the needs of manufacturing, lean and efficient, timely maintenance and perfect, can completely meet the needs of customers.
Features:
1. Output voltage: low gear voltage 0-150V continuously adjustable, high gear voltage 0-300V continuously adjustable.
2. Output frequency: 50Hz, 60Hz, 40-499.9HZ continuously adjustable
3. Ultra-high capacity:instantaneous current can withstand three times rated current.
4. One-key stop function in case of fault, fast response, response time within 2ms.
5. Multiple protection and alarm functions, such as overcurrent, overvoltage, over temperature, short circuit, overload and so on.
6. High-precision frequency stabilization voltage regulator, rapid adjustment of voltage, frequency.
Parameters:
| Item | Parameter | |
| Output capacity | 5KVA | |
| AC input | ||
| Input Phase | Single phase | |
| Waveform | SINEWAWE | |
| Voltage | 220V±15% | |
| Frequency fluctuation range | 50 or 60HZ±10% | |
| power factor | ﹥0.9 | |
| AC output | ||
| Output Phase | Single phase | |
| Waveform | SINEWAWE | |
| Low gear voltage | 0-150V continuously adjustable | |
| High gear voltage | 0-300V continuously adjustable | |
| Frequency | 50Hz, 60Hz, 40-499.9HZ continuously adjustable | |
| Frequency stability | ≤0.01% | |
| High gear maximum current (A) | 21A (150-300V) | |
| Low gear maximum current (A) | 42A (0-150V) | |
| Whole machine performance | ||
| Power regulation rate | ﹤1% | |
| Load regulation rate | ﹤1% | |
| Waveform distortion | ﹤2% (under line resistive load) | |
| Insulation resistance | DC500V≥20MΩ | |
| Withstand voltage insulation | AC 1800V 5mA/1 min | |
| Efficiency | ﹥85% | |
| Response time | ≤2ms | |
| Crest Factor | 3:1 | |
| Protection device | With multiple protections such as overvoltage, overcurrent, overload, input undervoltage, overtemperature, short circuit, etc. | |
| Display | ||
| Display interface | Digital LED display | |
| Voltage | 4 digits, digital voltmeter, resolution 0.1V | |
| Current | 4 digits, digital ammeter, resolution 0.1A | |
| Power | 4 digit, digital wattmeter | |
| Frequency | 4 digit number, digital frequency meter | |
| Equipment dimensions | H*D*W 675*530*350 | |
| Equipment weight | 70kg | |
|
|
