IEC60884-1 2013 Clause 25.2 20N±0.2N Ball Pressure Test Apparatus
  • name
  • name
  • name
  • name

IEC60884-1 2013 Clause 25.2 20N±0.2N Ball Pressure Test Apparatus

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 20 sets per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2137
Ball Diameter:
Ф5mm
Ball Material:
Hardening Steel
Applied Force:
20N
Product Name:
Ball Pressure Test Apparatus
Support Size:
Ф50×100mm
Applied Pressure:
20N±0.2N
Highlight:

IEC 60884-1 Ball Pressure Test Apparatus

,

Clause 25.2 Ball Pressure Test Apparatus

,

20N Ball Pressure Test Apparatus

Product Description



IEC60884-1:2013 clause 25.2 20N±0.2N Ball Pressure Test Apparatus



Product overview:

This Test  Apparatus is suitable for testing the heat resistance of all electrical enclosures and external parts made of insulating materials, such as plugs and sockets of various countries, input sockets of appliances, switches, lamps and lanterns, and other similar products.
Meet the standard: IEC60884-1:2006, IEC60598-1:2014, IEC61058-1:2008, IEC60669-1:2007, IEC60320-1:2007

This new version ball pressure test apparatus with an additional supporting rack, after testing, operator take the ball pressure test apparatus out of the heating oven, to avoid damages to other devices or surfaces caused by high temperature due to random placement, operator can place the ball pressure test apparatus on this additional supporting rack.



Test Principle:

This Test Apparatus needs to be tested in a high-temperature chamber at a temperature of 40/70/125±2° for 1 hour, and then dipped in cold water to cool to room temperature within 10s. The diameter of the indentation of the measured sample shall not be greater than 2mm.



Technical Parameters:

Ball Diameter Ф5mm, hardening
Applied Pressure 20N±0.2N
Support Ф50×100mm, with temperature measuring hole, made of stainless steel
Configuration

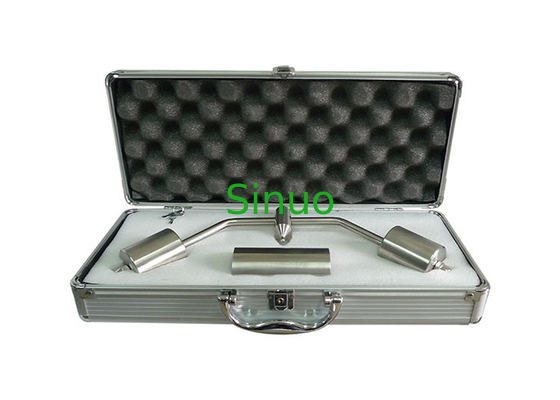

With special plastic case, branded thermocouple for ball pressure tester can be optional

IEC60884-1 2013 Clause 25.2 20N±0.2N Ball Pressure Test Apparatus 0
IEC60884-1 2013 Clause 25.2 20N±0.2N Ball Pressure Test Apparatus 1
