BS EN 12983-1 Double Handle Cookware Bending Resistance Test Equipment

BS EN 12983-1 Double Handle Cookware Bending Resistance Test Equipment

MOQ: 1
Price: Negotiable
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 50 sets per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1603
Test Sample:
Double/single Handle Cookwares
Applied Standard:
BS EN 12983-1
Applied Clause:
Clause 7.5 And Appendix D
Standard Figure:
Figure D.1
Test Contents:
Bending Strength Test
Appled Figure:
Figure D.1
Loading Bar Diameter:
Ф10±0.1mm
Range Of Force:
1-500N
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Plywood
Delivery Time:
30 Days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
50 sets per month
High Light:

EN 12983-1 Bending Resistance Test Equipment

,

500N Bending Resistance Test Equipment

,

Clause 7.5 Bending Resistance Test Equipment

Product Description



BS EN 12983-1 Double Handle Cookware Bending Resistance Test Equipment



Product information

The design of the cookware handle bending strength test apparatus of cookware complies with BS EN 12983-1:2020 clause 7.5 and Appendix D, figure D.1.

It is used for the bending strength test of the handle of the cookwares. The fastening connecting part of the handle bears a force of 100N, and there should be no failure in the joints such as riveting and welding.



Technical Parameters

Loading bar type D-section
Loading bar diameter Ф10±0.1mm
Range of force 1-500N
Scale resolution
Dimensions Length * width * height: 1000mm*500mm*810m
Power supply Match client's local power supply requirements



Sample installation

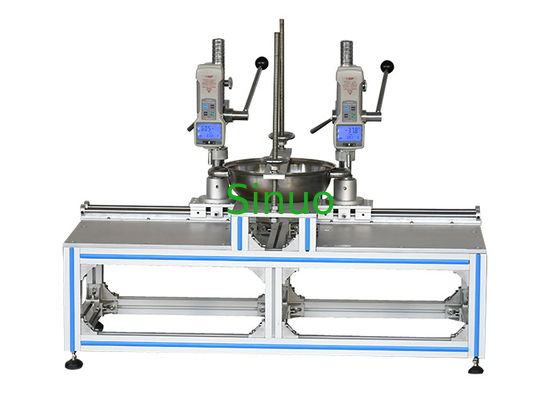

Install the cookware as shown below, adjust the left and right, up and down positions of the push-pull force gauges to align the D-section loading bar(s) with the measured handle(s) position. If testing single-handle cookware, make sure that the distance between the contact surface of the D-section loading bar and the handle is 10±1mm from the end of the handle. If testing double-handle cookware, the positions of push-pull force gauges on both sides should be well adjusted.

BS EN 12983-1 Double Handle Cookware Bending Resistance Test Equipment 0
