Toasters Abnormal Operation Test Apparatus PLC Control IEC60335-2-9 Clause 19

Toasters Abnormal Operation Test Apparatus PLC Control IEC60335-2-9 Clause 19

MOQ: 1
Price: Customized
Standard Packaging: Plywood case
Delivery Period: 30 Days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 10 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1116B
Applied Standard:
IEC 60335-2-9
Applied Clause:
Clause 19.101
Drive Mode:
Electrical
Output Power:
2KW
Control Method:
Advanced PLC
Display & Operation:
7" Touch Screen
Cooling Time:
0-999.9s Adjustable
Test Times:
0-9999 Can Be Preset
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood case
Delivery Time:
30 Days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
10 Sets Per Month
High Light:

Toasters Abnormal Operation Test Apparatus

,

IEC 60335-2-9 Abnormal Operation Test Apparatus

Product Description

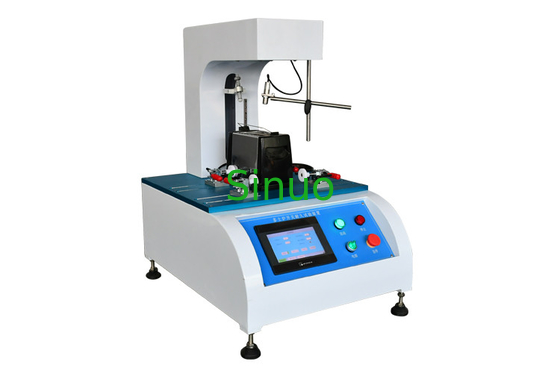

IEC60335-2-9 Toasters Abnormal Operation Test Apparatus Touch Screen Version



Product overview:

This toasters abnormal operation test apparatus meets the requirements of IEC60335-2-9 clause 19.101. Toasters are operated at rated power input and under normal operation, but without bread, for six cycles of operation. The appliance is then allowed to cool to approximately room temperature. This test is carried out 500 times.



This test apparatus adopts advanced PLC control and touch screen display,the test time and test cycles can be preset, the test will be carried on automatically after all parameters are set well, which is easy for operation.



Technical parameters



Power supply Match client's local power supply requirements
Control method PLC control
Display & operation method Touch screen
Test Station Single
Drive mode Electrical
Output power 2KW
Interval time 0-999.9s adjustable, can be preset
Cooling time 0-999.9s adjustable, can be preset
Operation cycles 0-9999, can be preset, default 6 cycles
Test Times 0-9999, can be preset, default 500 times
Interval time The pause time of the manipulator in the upper limit position
