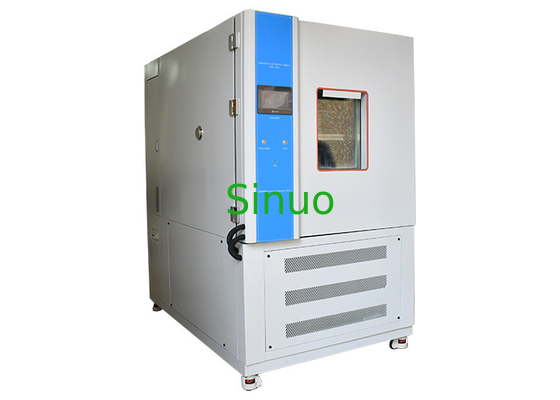

IEC 60068 Temperature And Humidity Enviromental Test Chamber 1000L

IEC 60068 1000L Temperature and Humidity Enviromental Test Chamber

Product overview:

This temperature and humidity test chamber is suitable for determining the adaptability of electronic and electrical products, components and materials for use and storage under high and low temperature and certain humidity and heat conditions. The performance indicators have reached the international standards:

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”

IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”

Technical parameters:

Power Supply	Three phases: AC380V ± 10%, 60Hz, 9.5KW
Control & Operation	PLC and touch screen intelligent control system
Chamber Size	Inner Size	External Size
	1000*1000*1000 mm (W*D*H)	W1250*D2100*H2370 mm (W*D*H)
Temperature Range	-40 °C ~+150°C
Humidity Range	20%～98%RH
Temperature Resolution	0.1℃
Temperature Fluctuation	±0.5℃
Temperature Uniformity	±2℃
Humidity Fluctuation	±2%RH
Humidity Uniformity	±2/3%RH
Heating Rate	RT (room temperature)～+150℃ takes about 45 minutes (measured under no load and when the room temperature is +10～+30℃)
Cooling Rate	RT (room temperature)～-40℃ takes about 60 minutes (measured under no load and when the room temperature is +10～+30℃)
Temperature and Humidity Range Scheme

Sinuo can offer various tailored enviromental test chambers according to clients' on-site limits and actual testing requirements. You are welcome to contact us for professional technical consultation and product test proposal recommendations.
