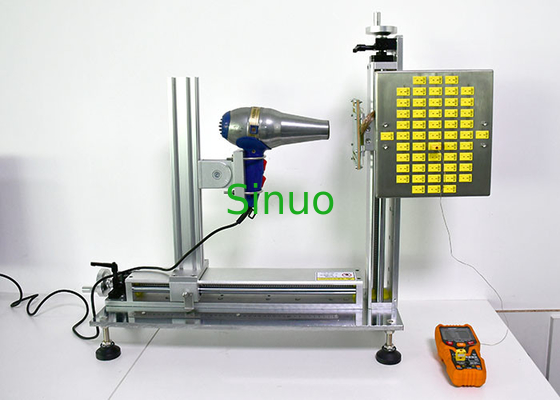

Handheld Hair Dryers Outlet Air Temperature Measuring Device UL859
| Applied Standard: | UL859, IEC 61855 | Test Sample: | Hand-held Hairdryers |
| Measuring PlateSize: | L140×W134×D14.2mm | Measuring Plate Material: | Epoxy Board, Aluminum Bracket |
| Thermocouple Type: | Omega K Type, Thread Length 0.25mm | Thermocouple Layout: | 53 Points |
| High Light: | Hair Dryers Temperature Measuring Device,UL859 Air Temperature Measuring Device |
||
UL859 Temperature Measuring Device
Product overview:
This temperature measuring device is designed and manufactured according to UL 859, it is required by IEC 61855 clause 6.5 figure 2 and 3. It is
suitable for measuring the temperature of the outlet air of the hand-held Hairdryers and the temperature of the roller of the curling appliances.
Working principle:
It uses the temperature inspection instrument to monitor the temperature of the measuring point according to the standard position, and modify it according to the standard requirement of clasue 6.5.2 formula.
Technical Parameters:
| Measuring Plate Size | Length * Width* Thickness:140×134×14.2mm,according to Figure 2 |
| Thermocouple | Omega K type, thread length 0.25mm |
| Measuring plate material | Made of epoxy board, aluminum bracket |
| Thermocouple layout | According to the position requirements of standard figure 2, 53 points are arranged, and the holes are filled with epoxy powder |
| Specimen mounting bracket | Adopts sliding table, the distance from the temperature measuring board can be finely adjusted by the screw |
| Configuration | The temperature inspection instrument is provided by operator |
