Terminal Abuse Test Apparatus UL498 Figure 129.1~129.2
  • name
  • name
  • name
  • name

Terminal Abuse Test Apparatus UL498 Figure 129.1~129.2

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 20 sets per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2402
Applied Standard:
UL498:2001
Applied Clause:
Flush And Self-contained Receptacles
Applied Specimen:
Clause 129
Applied Figure:
Figure 129.1~129.2
Pin Material:
Tool Steel
Test Weight:
8-ounce (0.23-kg)
Highlight:

UL498 Terminal Abuse Test Apparatus

,

Clause 129 Terminal Abuse Test Apparatus

Product Description



UL498 Terminal Abuse Test Apparatus



Equipment Overview:



This terminal abuse test apparatus is manufactured according to UL498: 2001 Clause 129 and figure 129.1~129.2.

The flush and self-contained receptacles having a 5-15R, 5-20R, 6-15R, or 6-20R configuration used for the conductor insertion and retention test and the conductor push-in test are to be tested through this test apparatus.



Test Procedures:



Please refer to UL498: 2001 Clause 129:

Each receptacle is to be mounted in the test fixture with its face in a vertical plane. The test pin is then to be fully inserted into the ″Push-In″ terminal opening. An 8-ounce (0.23-kg) weight is to be gradually suspended from the test pin 6 inches (152 mm) from the plane of the terminal opening. The weight is to be applied for one minute, following which the weight is to be removed. The application of the weight is to be repeated with the receptacle rotated 90, 180 and 270 degrees for a total of four applications per receptacle.



Technical Parameters:



Structure and Dimensions of the terminal abuse test apparatus are manufactured according to following standard figures:

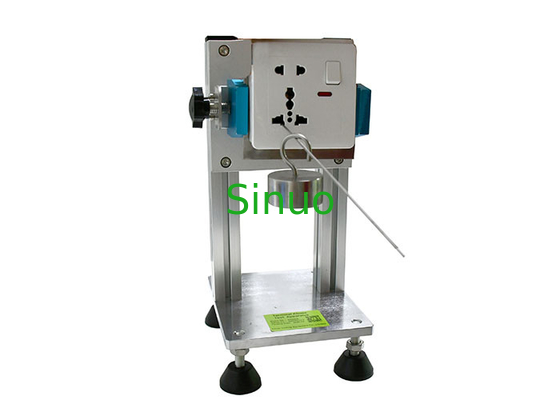

Terminal Abuse Test Apparatus UL498 Figure 129.1~129.2 0



Terminal Abuse Test Apparatus UL498 Figure 129.1~129.2 1
