Coupler 155°C Heating Resistance Test Device IEC 60320-1 Figure 13
| Applied Standard: | IEC60320-1 | Applied Clause: | Clause 18.2 |
| Standard Figure: | Figure 13 | Control: | Electrical |
| Display: | Digital | Test Content: | Heating Resistance |
| High Light: | 155°C Heating Resistance Test Device,Figure 13 Heating Resistance Test Device |
||

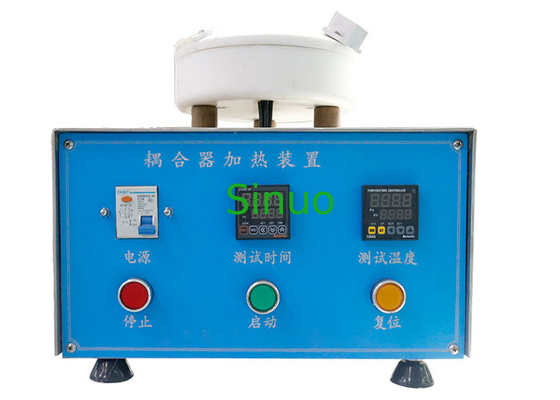

IEC 60320-1 Coupler Heating Resistance Test Device
Equipment overview:
The coupler heating test device is designed and manufactured according to IEC60320-1 clause 18.2 and figure 13. It is used to check the heat resistance of coupler in hot conditions and severe hot conditions.This device is built-in temperature control, precise digital display and durable.
Technical Characteristics:
| Test station | Single |
| Control method | Electrical |
| Heating method | Electrical heating, RT+10~160℃±2℃, can be preset |
| Test contents | 10A heat-resistant appliance input socket: test 10A connector, test temperature 120°±2° |
| 10A severe heat-resistant appliance input socket: test 10A connector, test temperature 155°±2° | |
| 16A severe heat-resistant appliance input socket: test 16A connector, test temperature 155°±2° | |
| Test duration | 0-99 hours and 59 minutes can be preset |

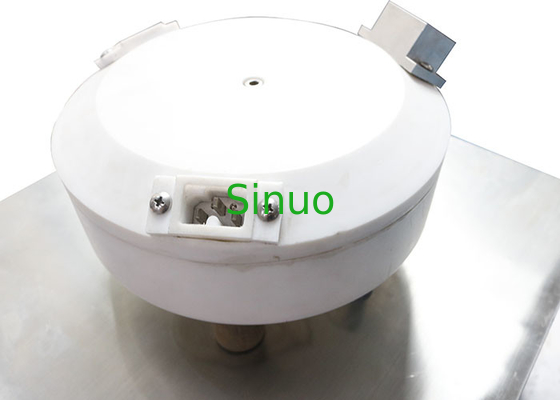

| Center distance of coupler | Arranged uniformly in a circle of Φ175mm |
| Standard gauge | Standard 10A heat resistance, 10A server heat resistance and 16A server heat resistance are heating gauges |
